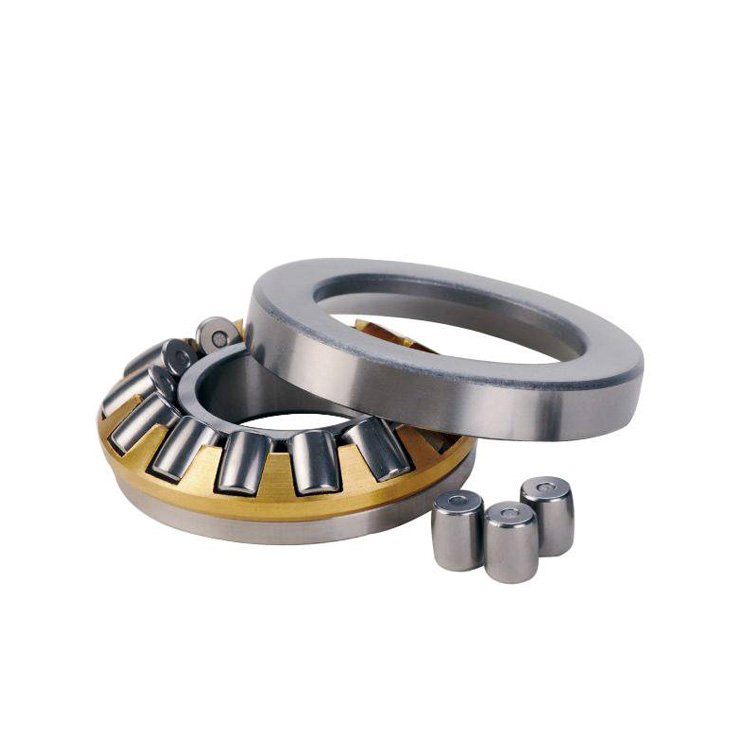

Spherical Roller Thrust Bearings

1.Product Introduction: With spherical rollers as the rolling elements, capable of compensating for installation deviations of ±1.5°, having strong axial load-bearing capacity, suitable for heavy-duty scenarios with installation deviations.

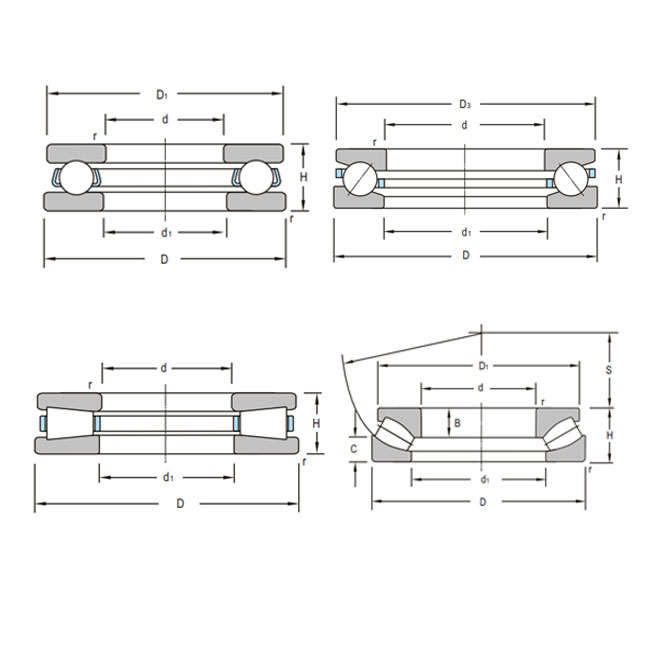

2.Structure Type: Shaft washer + housing washer (with spherical raceway) + spherical rollers + cage, open structure.
3.Size Range: Inner diameter: 50 - 800mm, outer diameter: 100 - 1000mm, height: 25 - 150mm.
4.Material: Shaft washer: GCr15/GCR15SIMN/20Cr2Ni4A, housing washer: GCr15/GCR15SIMN/20Cr2Ni4A, rolling elements (spherical rollers): GCr15/GCR15SIMN, cage: steel / brass.
5.Accuracy: Conventional P0/P6 grades, models for large equipment are of P5 grade.
6.Application Fields: Axial support of large motors, mining machinery, port cranes, wind power equipment.
7.Key Inspection Items: Aligning angle (±1.5°), smoothness of spherical raceway, axial load-bearing capacity.

Product Description

High-Capacity Spherical Roller Thrust Bearings for Extreme Industrial Demands

When your equipment faces relentless axial forces, misalignment challenges, or extreme temperatures, spherical roller thrust bearings deliver unmatched performance. Designed to handle heavy axial loads while compensating for angular misalignment (±1.5°), these bearings are the backbone of industries like metallurgy, mining, and renewable energy. LUOYANG INNO BEARING combines advanced material science and rapid customization to produce high-performance spherical roller bearings for severe conditions.

Technical Specifications

Parameter Details
Load Capacity Axial: 2,500 kN, Radial: 1,200 kN
Temperature Range -50°C to +150°C (High-temperature bearing options available)
Precision & Materials P0/P6 standard (P5/P4 custom); GCr15, GCr15SiMn, or 20Cr2Ni4A bearing steel
Lubrication Grease, oil, or solid-film coatings for heavy-duty roller bearing setups

Key Advantages

  • Heavy Load Mastery: Support heavy axial and radial loads in mining crushers and port cranes.
  • Self-Aligning Precision: Compensates for shaft deflections to minimize wear in thrust bearing applications.
  • Customization at Speed: Tailored spherical roller thrust bearings up to φ5000mm delivered in 15–20 days.

Industry-Proven Applications

  • Metallurgy & Mining: Withstand shock loads in rolling mills and high-temperature bearing operations.
  • Wind Turbines & Hydropower: Corrosion-resistant spherical roller bearing designs for harsh saltwater environments.
  • Port Machinery: P4-grade precision roller structures ensure low noise and long operational lifespans.

Quality & Logistics

Every bearing undergoes triple-stage QC including raw material spectrometry, CMM checks, and 100% vibration testing. Standard roller bearings ship in 48 hours, with custom φ3000mm+ designs delivered in 15 days.

FAQs

Q: Can you replicate legacy spherical roller thrust bearings?
A: Yes! Share your drawings, and we’ll reverse-engineer custom bearings with modern materials.

Q: How to extend bearing life in high-dust environments?
A: Pair solid-film lubrication with our IoT health monitoring for high-load spherical roller bearing units.

Q: Do your thrust bearings comply with EU regulations?
A: Absolutely—REACH and RoHS certifications are standard for our roller bearing products.

Contact Us

Need Spherical Roller Thrust Bearings That Match Your Ambition?

Contact our engineering team to receive free technical consultations, CAD drawings, or urgent quotes.
