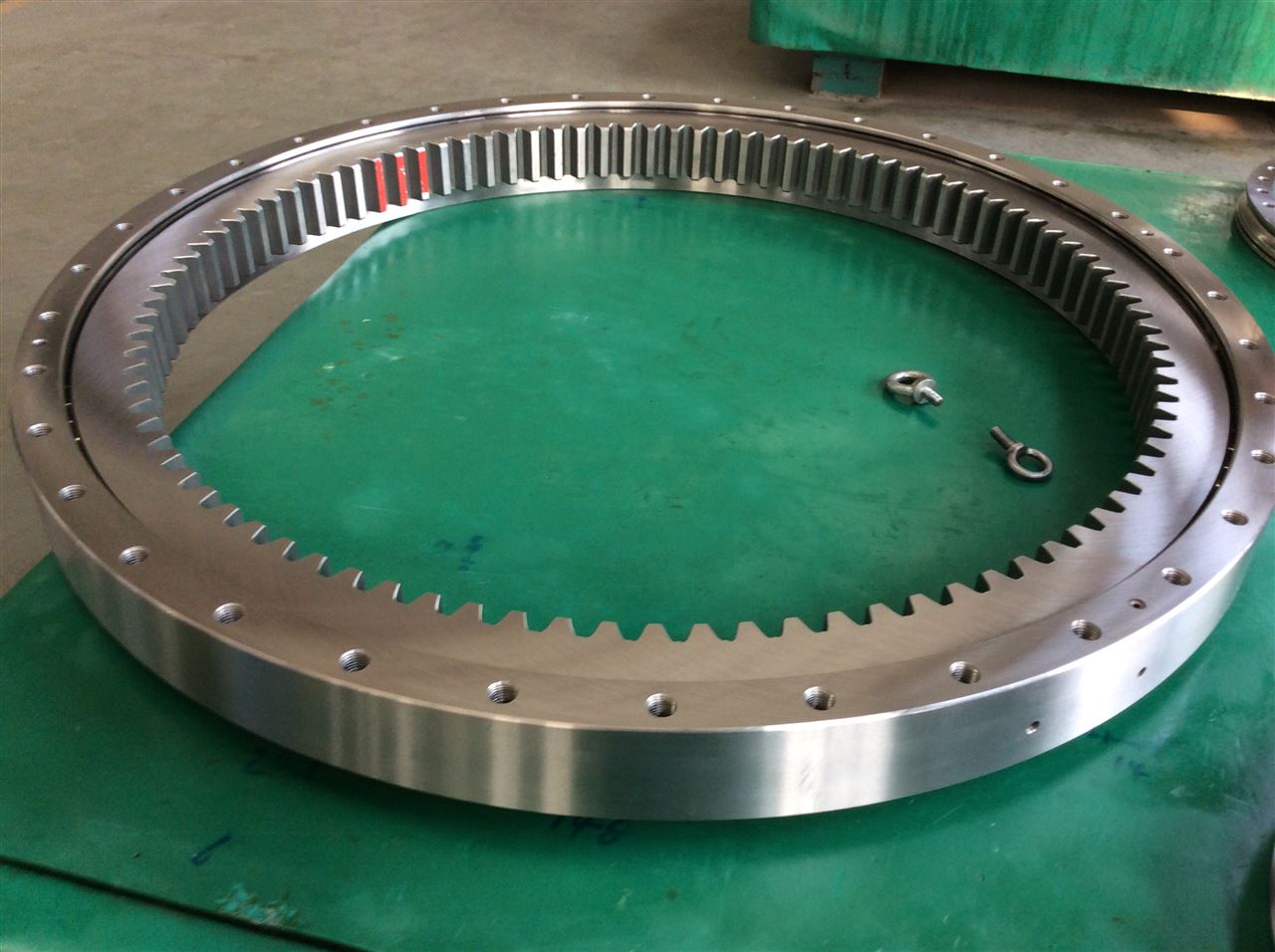

Ball Bearing Slewing Ring

1.Product Introduction: Slewing rings with steel balls as the rolling elements, commonly known as ball-type slewing bearings, featuring flexible slewing and low friction, suitable for medium and light-load slewing scenarios.

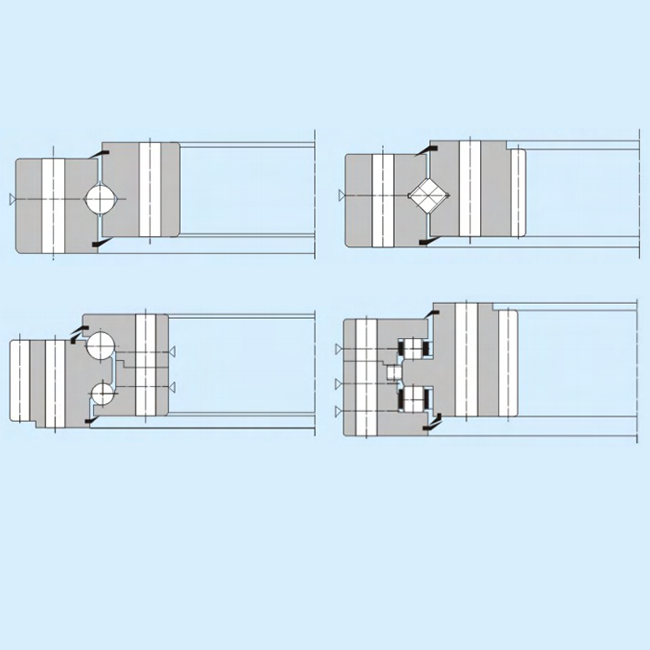

2.Structure Type: It has an annular shape. The inner and outer rings have single or double arc raceways, with built-in single-row or double-row steel balls, nylon or steel cages, rubber seals on both sides, and evenly distributed mounting holes.
3.Size Range: Outer ring diameter: 300 - 2500mm, inner ring diameter: 250 - 2350mm, height: 15 - 80mm.
4.Material: Inner ring / outer ring: 50Mn, 42CrMo; rolling elements: GCr15 bearing steel, GCr15SiMn (optional for impact resistance); seals: nitrile rubber, fluororubber (optional for oil and high temperature resistance).
5.Application Fields: Small excavators, amusement equipment, light logistics turntables, ordinary machine tools.
6.Key Inspection Items: Steel ball clearance, slewing flexibility, sealing and waterproof performance.

Product Description

Why Choose Our Ball Bearing Slewing Rings?

If you're searching for a ball bearing slewing ring that combines durability, precision, and rapid customization, you’ve found your solution. Designed for heavy machinery, port equipment, and metallurgical systems, our slewing rings deliver unmatched performance in extreme conditions—whether it’s 150°C furnace environments or heavy-load crane operations. With 30+ years of R&D expertise, we engineer every component to reduce downtime and extend service life.

Core Advantages

  • 30+ Years of Specialized Engineering: We’ve perfected slewing ring design for high-load, high-temperature, and high-impact applications.
  • 15–20 Days for Oversized Custom Orders: Need a φ3000mm+ product? Our modular production system delivers custom bearing solutions 30% faster than industry averages.
  • Built to Endure Extreme Stress: Metallurgical-grade materials (50Mn/42CrMo steel) and specialized heat treatment ensure resistance to wear, corrosion, and thermal deformation.
  • Global Inventory & 48-Hour Delivery: With 1,000+ standard slewing rings in stock and regional logistics hubs, we minimize delays for urgent orders.

Technical Excellence

Parameter Specification
Diameter Range 200mm – 5000mm
Temperature Resistance -30°C to 150°C
Load Capacity Up to 10,000 kN static/dynamic loads
Materials 50Mn/42CrMo steel, GCr15 bearing steel
Precision Runout tolerance ≤0.05mm

Where Our Ball Bearing Slewing Rings Excel?

  • Metallurgical Equipment: Withstand 150°C furnace environments and heavy tilting loads.
  • Port Machinery: Saltwater-resistant coatings and impact-proof designs for cranes.
  • Heavy Mining Equipment: High-load bearings for tunnel boring machines and excavators.
  • Renewable Energy Systems: Low-noise (<35dB) operation for solar trackers and wind turbine yaw systems.

Quality Assurance: Zero Compromise

Every ball bearing slewing ring undergoes:

  1. Material Inspection: Spectrometer checks for steel purity.
  2. In-Process Testing: Raceway grinding accuracy ≤0.01mm.
  3. 12-Parameter Final Check: Vibration, fatigue, and lifespan validation.

Result: 99.9% defect-free performance.

Global Supply Chain

Standard Orders: 48-hour delivery from regional hubs (EU, North America, Asia).
Custom Projects: Dedicated engineering teams for urgent large-scale orders.

FAQs

Q: How do you achieve a 15–20-day lead time for φ3000mm+ slewing rings?
A: Our modular production system pre-fabricates components, reducing assembly time by 40%.

Q: Can your slewing rings handle heavy impacts in port machinery?
A: Yes! Impact-resistant steel (GCr15SiMn) and reinforced cages absorb shock loads.

Q: Do you provide IoT-driven maintenance support?
A: Absolutely. We offer predictive maintenance plans with real-time bearing wear monitoring.
