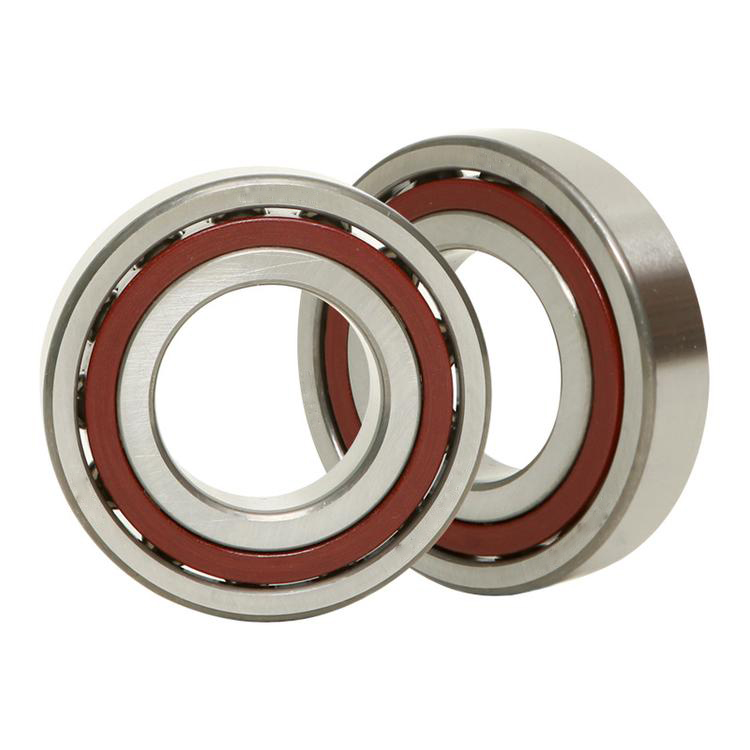

Angular Contact Ball Bearings

1.Product Introduction: With contact angles of 15°, 25°, or 40°, they can bear combined radial and axial loads. The larger the contact angle, the stronger the axial load-bearing capacity. They are suitable for various precision transmission scenarios.

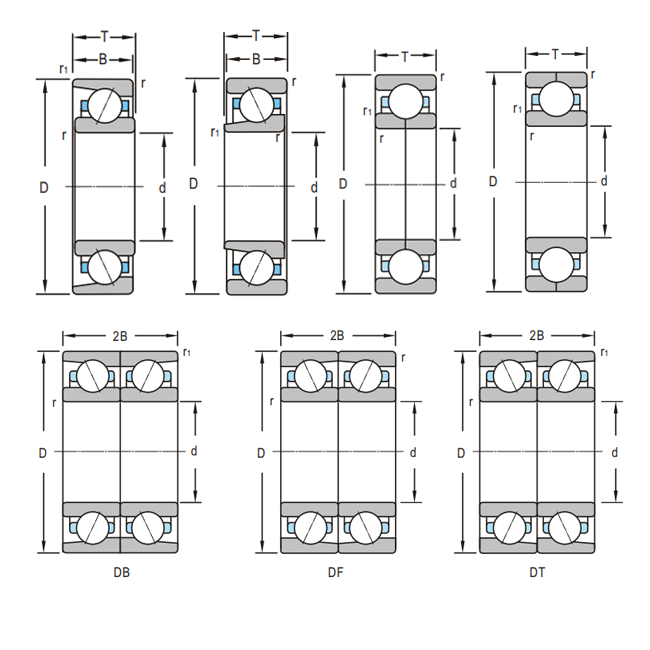

2.Structure Type: Inner ring + outer ring (with angular contact raceway) + single-row steel balls + cage. They can be used in pairs in a back-to-back or face-to-face arrangement.
3.Size Range: Inner diameter: 15 - 500mm, outer diameter: 40 - 800mm, width: 11 - 180mm.
4.Material: Inner ring / outer ring: GCr15/GCR15SIMN, rolling elements (steel balls): GCr15/GCR15SIMN, cage: brass (conventional) / aerospace aluminum alloy (for high-speed models).
5.Accuracy: Conventional P0 grade, precision models are of P6/P5/P4 grades.
6.Application Fields: Machine tool spindles, turbochargers, high-end motors, precision reducers, automobile transmissions.
7.Key Inspection Items: Accuracy of contact angle (deviation ≤ 1°), radial runout (≤ 0.005mm), consistency of pairing clearance, running noise (≤ 45dB).

Product Description

Precision Angular Contact Ball Bearings for Extreme Industrial Demands

Angular contact ball bearings are engineered to handle combined radial and axial loads, making them indispensable for high-speed, high-precision applications. At LUOYANG INNO BEARING CO., LTD, we have specialized in manufacturing these bearings for over three decades, combining raceway geometry expertise with material innovation to deliver unmatched reliability. Whether you need standard or custom solutions, our ball bearing products excel in demanding environments.

Technical Specifications

Parameter Details
Inner Diameter 15mm – 5000mm (customizable large bearing options)
Accuracy & Materials ABEC-1 to P4 (ISO 492); GCr15 steel or ceramic hybrid ball bearings
Load Capacity & Temp 20% higher dynamic load rating vs standard bearings; Range -40°C to 150°C (up to 500°C custom)
Customization Speed Modular production cuts lead times for large angular contact bearings by 30%

Key Advantages

  • Extreme Environment Performance: Operates seamlessly at high temperatures or under heavy dynamic shock loads in angular contact ball bearings.
  • Medical-Grade Precision: P4-level accuracy with noise levels below 35dB for sensitive diagnostic imaging systems.
  • Global Supply & Testing: 1,000+ standard bearing models in stock for 48-hour dispatch, backed by 12+ quality inspections.

Built for Your Industry

  • Metallurgy & Mining: Heat-treated bearings withstand extreme operational stress in crushers and continuous rolling mills.
  • Port Machinery: Designed for heavy crane slewing and hoists, offering 50,000+ hours of service life in marine environments.
  • Medical Imaging: P4-grade angular contact ball bearings maintain ≤0.002mm radial runout for precise medical scanner rotation.

Lifetime Performance Optimization

Every bearing is backed by raw material spectrometry and 100% roundness testing. We provide IoT condition monitoring, legacy equipment reverse engineering, and specialized lubrication plans for high-temperature thrust and radial bearings.

FAQs

Q: How do your angular contact ball bearings achieve low noise levels for medical devices?
A: Precision grinding and aerospace-grade cages minimize friction, critical for quiet bearing operation in scanner systems.

Q: Can you customize φ3000mm bearings in 15 days?
A: Yes! Our modular production system streamlines custom large-scale angular contact bearing manufacturing.

Q: What coatings protect against port machinery corrosion?
A: Zinc-nickel plating or ceramic hybrid surfaces provide long-lasting saltwater protection for heavy-duty ball bearings.

Contact Us

Need an Angular Contact Ball Bearings Solution Tailored to Your Needs?

Contact our engineering team to request custom CAD drawings, technical datasheets, or industry case studies.
