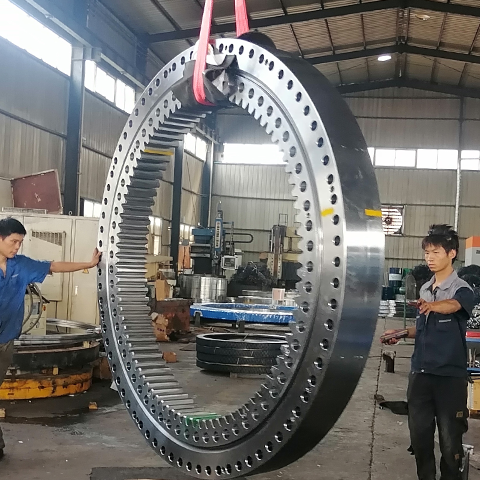

Slewing Machine

1.Product Introduction: Integrated mechanical devices containing slewing bearings (such as slewing platforms, slewing drive units), which can be directly integrated into equipment to achieve 360° slewing function.
2.Structure Type: It consists of slewing bearings (ball-type or roller-type), drive motors, gearboxes, and bases. Some are equipped with braking devices, and the bases have standard mounting holes.
3.Size Range: Overall diameter: 500 - 3000mm, height: 100 - 500mm, output torque: 50 - 5000N·m.
4.Material: Inner ring / outer ring: 50Mn, 42CrMo; rolling elements: GCr15, GCr15SiMn (optional for impact resistance); seals: nitrile rubber, fluororubber (optional for oil and high temperature resistance).
5.Application Fields: Slewing platforms of construction machinery, port loading and unloading machinery, rotating platforms of amusement equipment, photovoltaic tracking systems.
6.Key Inspection Items: Slewing accuracy, output torque, braking performance.

Product Description

High-Performance Slewing Machines for Heavy-Duty Applications | Custom Solutions & 48H Fast Delivery

When your equipment faces extreme loads, high temperatures, or non-stop operational demands, every component matters. At LUOYANG INNO BEARING CO., LTD, we engineer slewing machines that redefine durability and precision. Designed for metallurgical, port, and construction machinery, our solutions handle axial loads up to 12,000 kN and operate seamlessly in environments reaching 150°C. With 30+ years of expertise, we deliver not just bearings – but 360° rotational systems built to outlast your toughest challenges.

Core Technical Specifications

Parameter Specifications
Slewing Diameter 500mm – 5000mm
Load Capacity 1,500 kN – 12,000 kN
Precision Grade ISO P5/P6 (runout ≤0.05mm)
Material 50Mn/42CrMo steel (HRC 58-62)
Temp Range -30°C to +150°C

Where Our Slewing Machines Excel?

  • Metallurgy: Continuous casting turntables and ladle cranes.
  • Port Machinery: Container cranes and ship loaders.
  • Renewable Energy: Solar tracker systems and wind turbine yaw slewing machines.
  • Construction: Excavator swing systems and drilling rigs.

Customization & Quality Assurance

Our 4-Step Process for Tailored Slewing Machine Solutions:

  1. Requirement Analysis: We assess load, speed, and environmental factors.
  2. Prototyping: Receive 3D models and FEM stress reports within 72 hours.
  3. Production: Real-time tracking via modular manufacturing.
  4. Validation: Full-load testing with integrated IoT sensor performance reports.

Why Trust Us?

  • Triple-Layer Inspection: Ultrasonic material testing, dimensional accuracy (±0.01mm), and 500-hour lifespan simulations.
  • Global Delivery: Standard units in 3-5 days, custom slewing machines in 15-25 days.
  • Lifetime Support: Pre-installation CAD/3D support, IoT-driven wear monitoring, and legacy retrofitting.

FAQs

Q: What's the minimum order quantity for custom slewing machines?
A: We accept single-unit orders with full prototyping support.

Q: How do you ensure precision in high-load conditions?
A: We utilize P4-grade grinding and 100% post-assembly noise/vibration testing.

Q: Can you retrofit old port cranes?
A: Yes – 83% of our custom slewing bearing projects involve legacy machinery upgrades.

Contact Us

Need a Quote or Technical Advice for Slewing Machine?

Contact our engineers today for a tailored solution.
