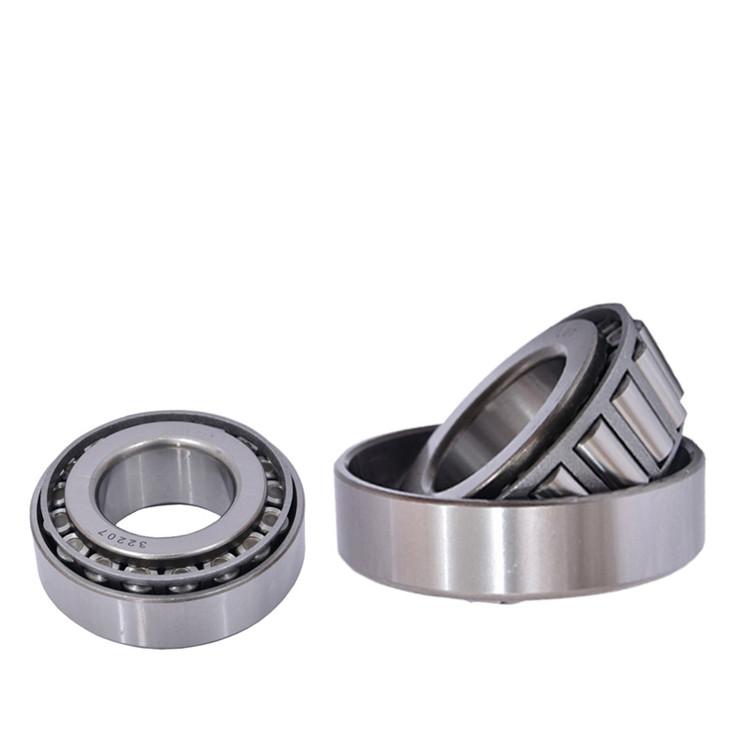

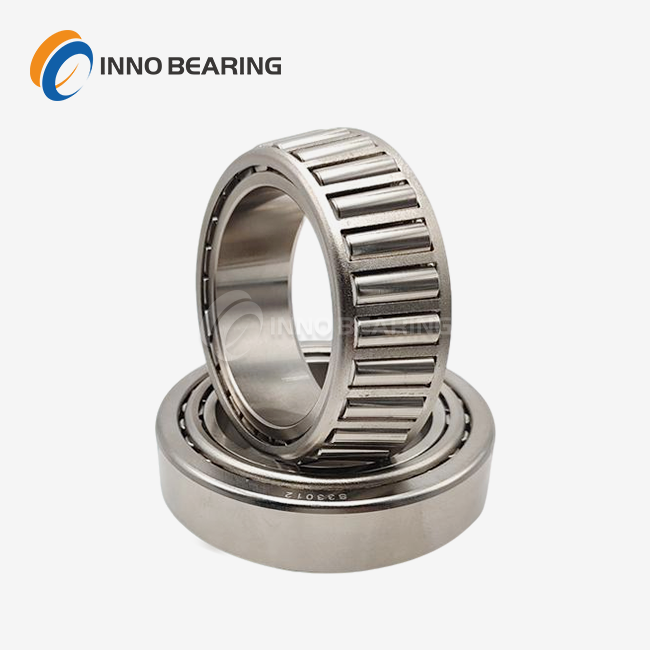

Cup Tapered Roller Bearing

1.Product Introduction: The outer ring is tightly fitted to the bearing seat, and the inner ring is detachable, suitable for scenarios where the outer ring is fixed.

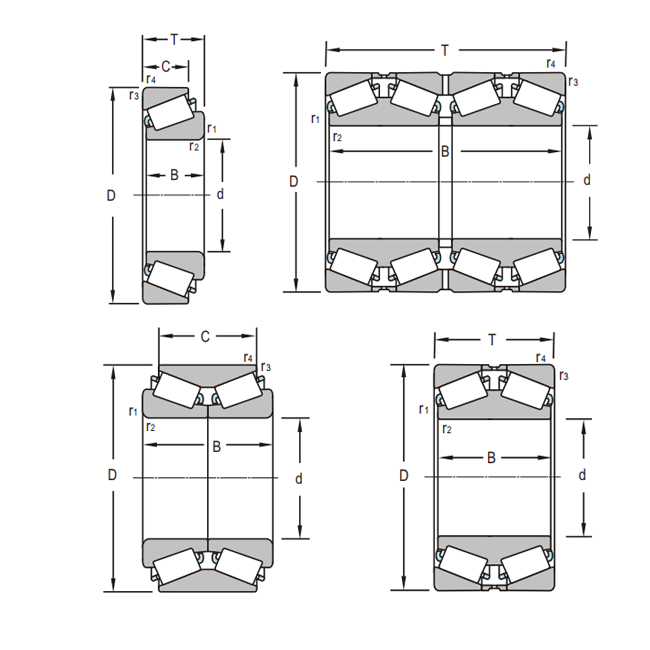

2.Structure Type: The outer ring has a tapered raceway (high - precision), the inner ring is separable (conventional precision), with a single - row of rollers + cage.
3.Size Range: Inner diameter 15 - 500mm, outer diameter 32 - 1000mm, width 10 - 200mm.
4.Material: Inner ring/Outer ring/Rollers: GCr15/GCr15SiMn/20Cr2Ni4A, cage: stamped steel / brass.
5.Precision: The outer ring is P5 level, and the inner ring is P6 level.
6.Application Fields: Machine tool spindle bearing seats, automobile hub bearing seats.
7.Key Inspection Items: Outer - ring dimensional accuracy, taper surface fitting degree, bearing seat fit clearance.

Product Description

High-Performance Cup Tapered Roller Bearings for Extreme Industrial Applications

Customizable Solutions for Heavy Loads (Up to 5000kN), High Temperatures (500°C+), and Ultra-Low Noise (<35dB)

When your machinery demands precision under pressure, Cup Tapered Roller Bearings deliver unmatched performance. Designed to handle combined radial and axial loads, these bearings excel in harsh environments—from scorching steel mills to high-precision medical imaging systems. At LUOYANG INNO BEARING CO., LTD, we engineer solutions that endure extreme temperatures, shock loads, and corrosive conditions while maintaining optimal efficiency. With over 30 years of expertise, our bearings are trusted by industries where downtime isn't an option.

Why Choose Our Cup Tapered Roller Bearings?

  • Built for Extreme Conditions: GCr15/GCr15SiMn steel construction offers 20% longer fatigue life, operating seamlessly from -50°C to +500°C.
  • Industry-Specific: Metallurgy-grade bearings use graphite-lubricated cages for 500°C stability; medical-grade units achieve <35dB noise via electropolished surfaces.
  • Rapid Delivery: 1,000+ standard bearing SKUs ready for 48-hour shipment; modular production cuts custom lead times by 30%.

Technical Specifications

Parameter Standard Range Customizable
Inner Diameter 15–500 mm Up to 5000 mm
Outer Diameter 32–1000 mm Up to 5000 mm
Lubrication Grease/Oil Solid-film (high-temp)

Industry-Proven Performance

Steel Mill Rolling Mills
Our Cup Tapered Roller Bearings withstand 24/7 operation in 500°C environments with integrated cooling compatibility.

Port Crane Slewing Rings
Impact-resistant variants handle 200kN dynamic loads—proven in 50+ port cranes.

Medical Imaging Gantries
Non-magnetic, low-noise bearings comply with IEC 60601 standards for MRI and CT scanners.

Quality Assurance

Every bearing undergoes vibration, hardness, and fatigue life checks to ensure a 99.9% reliability rate. We offer full end-to-end support, from CAD modeling to on-site installation.

FAQs

Q: Can your bearings handle OD >5000mm with P4 precision?
A: Yes! We've delivered φ5200mm non-standard bearings for hydropower turbines, maintaining P4 precision through proprietary grinding techniques.

Q: How do you achieve <35dB noise levels?
A: Precision-ground rollers and brass cages minimize friction. Medical-grade bearings are further polished to Ra 0.05μm.

Q: Do you support legacy machinery retrofits?
A: Our engineers provide free fitment analysis and CAD adaptations for outdated equipment.

Contact Us

Need a Cup Tapered Roller Bearing That Outlasts Your Equipment?

Contact our experts to request a quote or technical consultation today.
