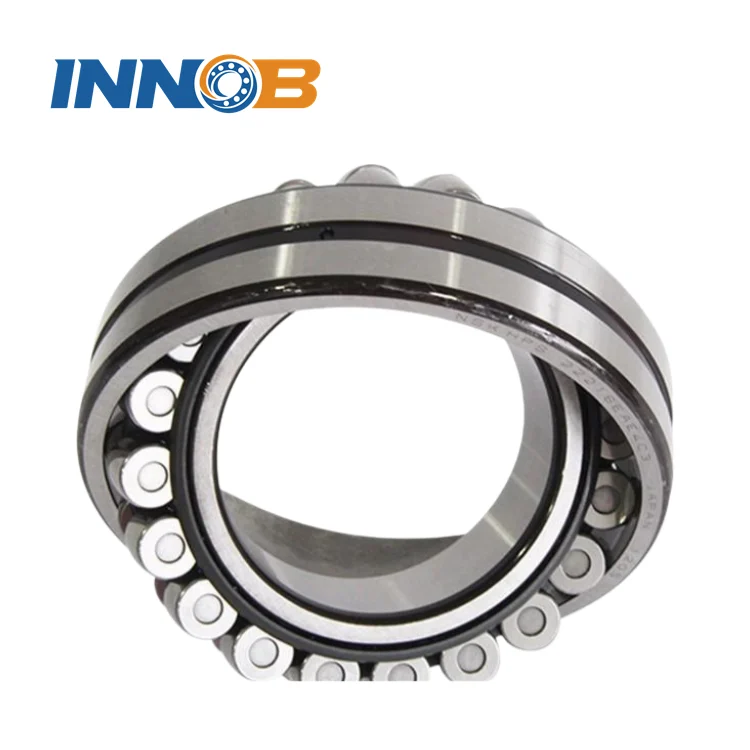

22334 Bearing

1.Product Introduction: The 22334 model is a self-aligning roller bearing, an extra-heavy-duty model, used in extremely heavy-load equipment.
2.Structure Type: The inner ring has a spherical raceway, the outer ring has double ribs, with double-row rollers + steel cage, and it is open.
3.Size Range: Inner diameter 170mm, outer diameter 360mm, width 120mm.
4.Material: Inner ring / outer ring: GCr15SiMn (heavy-load with integral forging), GCr15 bearing steel (conventional), rollers: GCr15 bearing steel, cage: steel.
5.Precision: P0/P6 level.
6.Common Inner Tapered Hole: The standard configuration is a 1:12 tapered hole (suitable for a shaft diameter of 170mm).
7.Application Fields: Extra-large rolling mills, port super-heavy-duty machinery, offshore wind power equipment.
8.Key Inspection Items: Forging flaw detection, radial load-bearing capacity (≥6000kN), tapered hole precision.

Product Description

22334 Bearing: High-Capacity Solution for Extreme Load Applications

When your heavy machinery faces extreme loads and harsh conditions, the 22334 bearing delivers unmatched durability. As a self-aligning roller bearing designed for extra-heavy-duty use, it combines robust construction with precision engineering. Whether you're operating rolling mills, port cranes, or offshore wind systems, this bearing ensures reliable performance under 150°C temperatures and dynamic loads.

Core Advantages

  • Heat Resistance: Forged from GCr15SiMn steel with carbide coating, our 22334 bearing handles metallurgical furnace temperatures up to 150°C.
  • Load Capacity: Double-row rollers and optimized raceway geometry outperform ISO dynamic load standards by 20%.
  • Rapid Supply: 48-hour shipping for standard units and 15–20 day production for non-standard bearing sizes (up to φ5000mm).

Technical Specifications

Parameter Specification
Dimensions (ID/OD/Width) 170mm / 360mm / 120mm
Load Capacity 220kN Dynamic / 480kN Static
Temperature Range -20°C to +150°C
Precision P0/P6 (P4 Optional)

Industry-Proven Reliability

  • Steel Production: 22334 bearing units withstand thermal deformation in rolling mills using 12-stage heat treatment.
  • Port Machinery: IP68 sealing protects against saltwater corrosion in container cranes.
  • Energy Sector: Custom ceramic hybrid roller designs for wind turbine pitch control systems.

Quality & Lifecycle Support

Every 22334 bearing undergoes spectrometer material testing, dimensional accuracy checks, and 8000kN load simulation. We provide IoT-driven predictive maintenance and 24/7 technical support.

FAQs

Q: How do you prevent premature wear in abrasive environments?
A: Our ESA-86G steel undergoes deep cryogenic treatment to enhance surface hardness, ensuring the 22334 bearing lasts 50,000+ hours.

Q: How does your IoT monitoring work?
A: Embedded sensors track temperature and vibration trends in the bearing, sending alerts when parameters exceed safe thresholds.

Q: Do you offer samples for bearing bulk orders?
A: Yes—we offer an expedited sampling program with 7-day lead times for φ170-500mm units.

Contact Us

Ready to Upgrade Your Machinery with the 22334 Bearing?

Contact our engineering team to request a custom quote or load analysis today.
