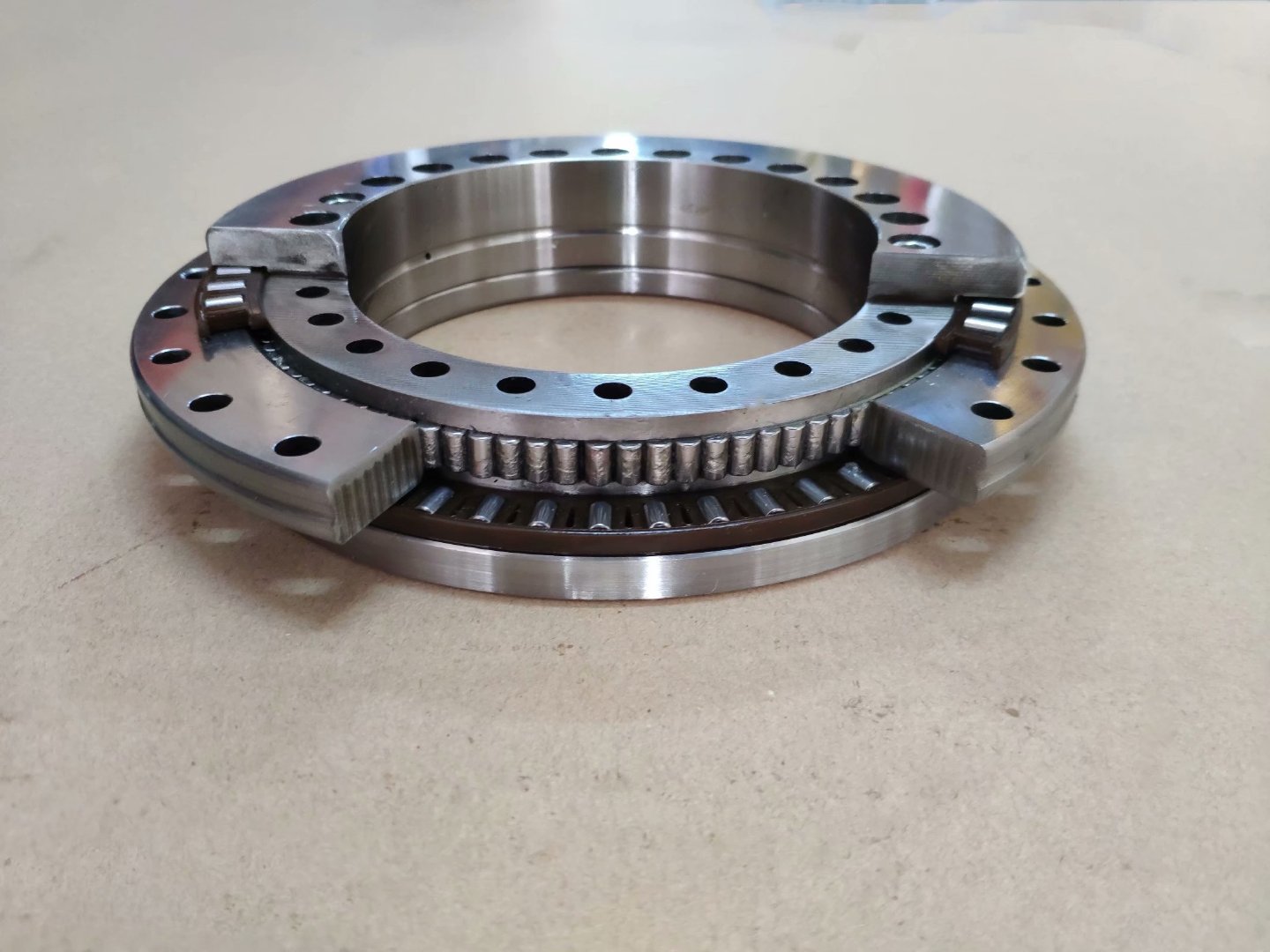

Turntable Bearings

1.Product Introduction: Also known as turntable slewing bearings, with 360° flexible slewing, divided into light, medium and heavy load-bearing grades, suitable for various turntable equipment, and the mounting surfaces are precision ground.
2.Structure Type: It has an annular shape (some are split for easy installation), made of thick-wall 50Mn steel, with single or double-row steel balls or rollers, dust-proof seals, and the flatness of the mounting surface is ≤0.1mm/m. Some are equipped with locating pin holes.
3.Size Range: Outer ring diameter: 200 - 5000mm, inner ring diameter: 160 - 4800mm, height: 20 - 180mm.
4.Material: Inner ring / outer ring: 50Mn, 42CrMo; rolling elements: GCr15 bearing steel, GCr15SiMn (optional for impact resistance); seals: nitrile rubber, fluororubber (optional for oil and high temperature resistance).
5.Application Fields: Machine tool turntables (vertical lathes), radar turntables, exhibition display equipment (rotating display stands), heavy logistics turntables.
6.Key Inspection Items: Flatness of the turntable, running noise of rolling elements, flatness of the mounting surface.

Product Description

High-Precision Turntable Bearings for Extreme Industrial Demands – Customized to Your Machinery, Delivered in 15-20 Days

Engineered for Heavy Loads (Up to 10,000kN), High Temperatures (150°C), and 35dB Ultra-Low Noise – Trusted by Metallurgy & Port Machinery Leaders

Turntable bearings, also known as slewing rings, are the backbone of rotating machinery across industries. At LUOYANG INNO BEARING CO., LTD, we specialize in crafting products that outperform in extreme conditions—whether it's a 150°C metallurgical kiln or a saltwater-exposed port crane. With 30+ years of engineering expertise, our bearing solutions combine precision, durability, and rapid customization to keep your operations running smoothly.

Product Overview

Parameter Specifications
Diameter Range φ200mm – φ5000mm
Load Capacity Static: Up to 10,000kN; Dynamic: 5,000kN
Rotational Accuracy P4/P5 Grade (ISO 194)
Temperature Tolerance -60°C to 150°C
Noise Levels ≤35dB (tested at 20 RPM)
Material Standards 50Mn, 42CrMo, GCr15 Bearing Steel

Why Choose Us?

  • Fast Custom Manufacturing: Need a non-standard φ3000mm slewing ring? Get it in 15–20 days—30% faster than industry averages.
  • Built to Withstand Extremes: Our bearings use high-purity 50Mn steel and specialized heat treatment for 2x wear resistance.
  • Zero-Defect Precision: Every bearing undergoes 12-point inspections, including vibration analysis and load-cycle testing.

Technical Excellence for Demanding Applications

1. Heavy-Load Slewing Rings
Designed for port cranes and mining equipment, our heavy-duty turntable bearings feature double-row roller designs for 10,000kN static loads and IP67-rated seals.

2. High-Temperature Solutions
For metallurgical kilns and steel plants, we offer 42CrMo alloy cores hardened to HRC 58–62 and custom lubrication ports for continuous 500°C operation.

3. Precision Micro Bearings
Ideal for robotics and medical systems, our cross-roller designs feature <0.001° backlash and polymer-composite cages for weight reduction.

Quality Assurance You Can Trust

  • Material Traceability: Full mill certifications for 50Mn/42CrMo steel.
  • Process Control: Hardness checks and grinding accuracy monitoring (≤5μm variance).
  • Final Validation: 72-hour load testing, noise/vibration analysis, and 3D surface scanning.

FAQs

Q: Can you make products larger than φ5000mm?
A: Yes! Our modular design approach allows custom bearing solutions up to φ8000mm.

Q: How do you achieve faster lead times?
A: We use pre-machined modules and agile production lines to cut machining steps by 40%.

Q: Do your bearings work in saltwater environments?
A: Absolutely. Specify our Sealed-for-Life series with fluororubber seals and anti-corrosion coatings.

Q: Can I get IoT-enabled bearings?
A: Yes! Our smart slewing rings come with embedded sensors for real-time load/temperature monitoring.
