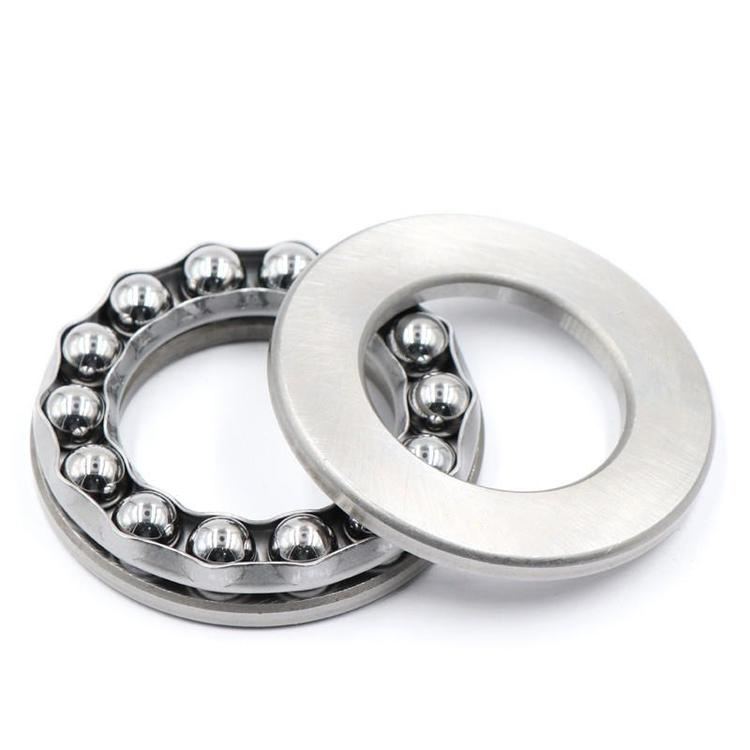

Thrust Ball Bearing

1.Product Introduction: With single-row or double-row steel ball structures, capable of bearing unidirectional or bidirectional axial loads, low friction coefficient, suitable for light and medium axial load scenarios.

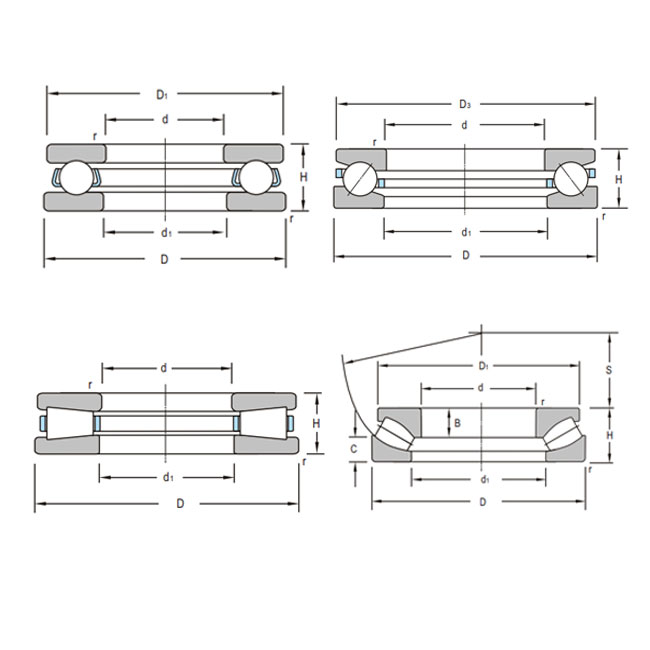

2.Structure Type: Unidirectional type (shaft washer + housing washer + single-row steel balls), bidirectional type (intermediate washer + double shaft washers + double-row steel balls), the cage separates the steel balls.
3.Size Range: Inner diameter: 10 - 300mm, outer diameter: 30 - 400mm, height: 8 - 50mm.
4.Material: Shaft washer: GCr15/GCR15SIMN/20Cr2Ni4A, housing washer: GCr15/GCR15SIMN/20Cr2Ni4A, intermediate washer: GCr15/GCR15SIMN/20Cr2Ni4A, rolling elements (steel balls): GCr15/GCR15SIMN, cage: stamped steel / brass.
5.Accuracy: Conventional P0/P6 grades, precision models are of P5 grade.
6.Application Fields: Machine tool spindles, water pumps, small motors, office equipment.
7.Key Inspection Items: Clearance between steel balls, flatness of shaft washer and housing washer, accuracy of rolling element arrangement.

Send Inquiry

Send Email

Product Description

High-Temp, Heavy-Load Thrust Ball Bearings Built for Metallurgical Machinery

Solve axial load challenges in extreme conditions with LUOYANG INNO BEARING's thrust ball bearings. Designed for metallurgical machinery, our bearings handle high temperatures, heavy axial loads, and corrosive environments while ensuring precision and longevity. With 1,000+ standard models in stock and custom solutions delivered 30% faster than competitors, we keep your operations running smoothly.

Technical Specifications

Parameter	Specification
Inner Diameter & Outer Diameter	ID 10 – 300mm \| OD 30 – 400mm (Custom thrust bearing sizes up to φ5000mm)
Axial Load Capacity	Up to 200 kN (Customizable for higher thrust ball bearing load demands)
Temperature Limit & Noise	150°C+ (HT Series with ceramic hybrids); Noise level <35dB
Materials	GCr15/GCr15SiMn/20Cr2Ni4A steel raceways, ceramic hybrid balls, stamped brass/steel cages

Key Advantages

Extreme Durability: 25% higher load capacity than industry standards, built to endure continuous high-heat bearing environments.
Rapid Global Delivery: Immediate shipping for 1,000+ standard thrust bearings with 15–20 day bulk custom production.
Customization Made Simple: Tailored dimensions, specialized alloys, and custom sealing structures for demanding heavy machinery.

Where Our Bearings Excel

Rolling Mill Gearboxes: Withstand heavy axial loads up to 200 kN, preventing premature failure in steel bearing units.
Smelting Furnace Conveyors: Ceramic hybrid balls and heat-resistant lubrication ensure smooth thrust ball bearing operation under thermal stress.
Heavy Press Machinery: Impact-resistant roller bearing and ball structures reduce deformation under sudden shock load spikes.

Quality & Predictive Maintenance

Every thrust ball bearing undergoes 12+ performance tests including vibration profiling and 0.001mm precision grinding. We provide pre-installation analysis and IoT predictive maintenance alerts.

FAQs

Q: How do your thrust ball bearings handle high temperatures in metallurgical equipment?
A: We use martensitic steel raceways and ceramic hybrid balls, paired with heat-resistant greases for high-temperature bearing stability.

Q: Can you make thrust bearings larger than φ3000mm?
A: Yes! Our XL Series supports OD up to φ5000mm, ideal for large rolling mill bearing assemblies.

Q: What ensures faster delivery for custom thrust ball bearing orders?
A: Modular production lines and pre-engineered bearing components cut lead times by 30%.
