Single Row Thrust Ball Bearing

1.Product Introduction: With a single-row steel ball structure, capable of bearing unidirectional axial loads, simple structure, suitable for light and medium unidirectional axial load scenarios.

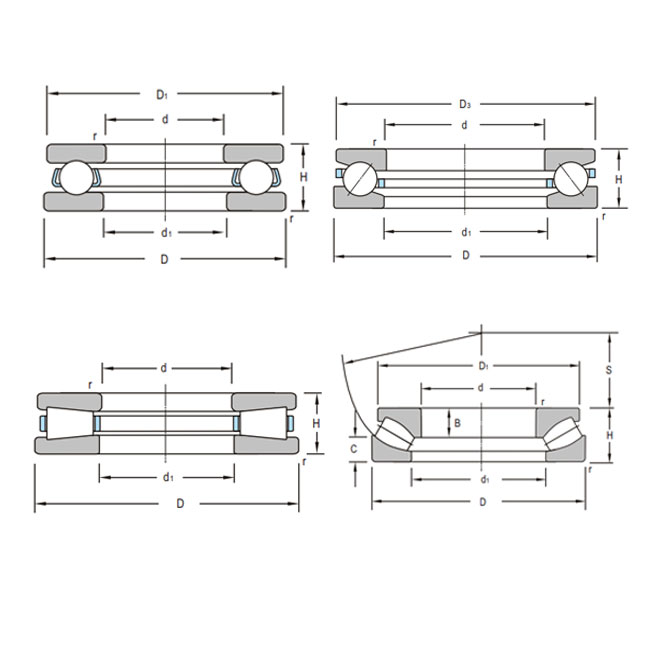

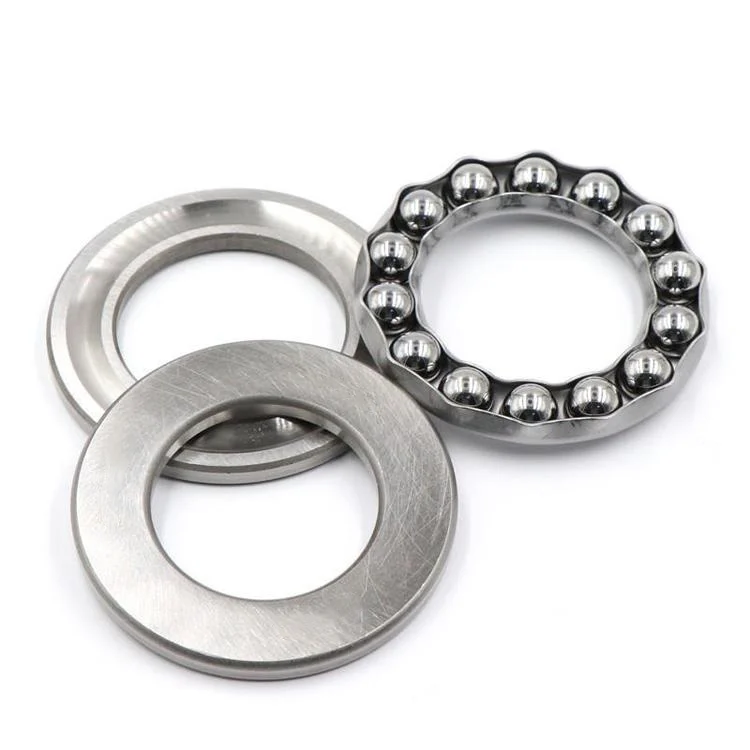

2.Structure Type: Shaft washer + housing washer + single-row steel balls + stamped steel cage, the shaft washer has an interference fit with the shaft.
3.Size Range: Inner diameter: 10 - 300mm, outer diameter: 30 - 400mm, height: 8 - 50mm.
4.Material: Shaft washer: GCr15/GCR15SIMN/20Cr2Ni4A, housing washer: GCr15/GCR15SIMN/20Cr2Ni4A, rolling elements (steel balls): GCr15/GCR15SIMN, cage: stamped steel / brass.
5.Accuracy: Conventional P0/P6 grades, precision models are of P5 grade.
6.Application Fields: Water pumps, small motors, feed shafts of machine tools, light industrial equipment.
7.Key Inspection Items: Axial clearance, conformity of steel balls fitting, flatness of shaft washer.

Product Description

Single Row Thrust Ball Bearing: Precision Engineered for Extreme Loads & Durability

Single row thrust ball bearings are your ultimate solution for managing unidirectional axial loads in demanding industrial environments. Engineered with a robust shaft washer, housing washer, and precision steel balls, these bearings excel in applications requiring high-temperature resistance, rapid customization, and unmatched reliability. At LUOYANG INNO BEARING CO., LTD, we combine 30+ years of manufacturing expertise with advanced heat treatment technologies to deliver thrust ball bearing products that outperform industry standards.

Technical Specifications

Parameter Specification
Inner Diameter & Outer Diameter ID 10–300mm; OD 30–400mm (Custom thrust bearing sizes up to 5000mm)
Height & Temperature Height 8–50mm; Operating Temp -30°C to +150°C (High-temp options available)
Materials GCr15/GCr15SiMn/20Cr2Ni4A alloy bearing steels
Certifications ISO 9001, CE, IATF 16949, FEM 9.511 compliant

Key Advantages

  • Axial Load Mastery: Handle heavy axial loads with optimized stress distribution across high-purity steel balls in thrust ball bearing setups.
  • Extreme Temperature Resilience: Carburizing and heat treatments ensure stable bearing operation in metallurgical kilns or coastal machinery.
  • Precision Options & Delivery: Available from P0/P6 up to P5/P4 precision grades; custom single row thrust ball bearings (φ3000mm+) delivered in 15–20 days.

Industry Success Stories

  • Port Machinery: High axial load single row thrust ball bearings reduced downtime by 40% for port crane operators facing shock loads.
  • Metallurgy: High-temperature thrust bearings with graphite lubrication operated for 18,000+ hours in steel rolling mills.
  • Medical Equipment: Low-noise thrust ball bearing designs achieve operation below 35dB to satisfy surgical suite standards.

Agile Supply Chain & Quality Control

Every bearing undergoes 12+ parameter checks, including axial clearance verification and steel ball conformity testing. We keep 1,000+ standard models in stock for 48-hour dispatch, backed by global warehousing and IoT predictive bearing maintenance.

FAQs

Q: Can you customize a φ2500mm product in 20 days?
A: Yes! Our modular production system cuts lead times, delivering large custom thrust ball bearings within 15–20 days without compromising precision.

Q: How do your single row thrust ball bearings handle high-temperature environments?
A: We use induction-hardened alloy steel and graphite-based lubricants validated through high-temperature bearing endurance tests.

Q: Do you offer emergency replacements for failed thrust bearings?
A: Our 48-hour rapid service covers standard stocked bearings, while dedicated engineering teams expedite custom production.

Contact Us

Optimize Your Machinery Today

Contact our engineers to request technical drawings, bulk pricing, or custom load proposals for your single row thrust ball bearing requirements.
