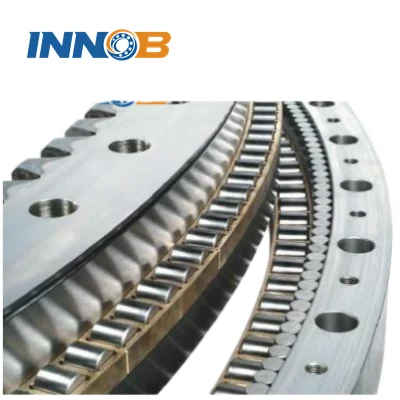

Heavy-Duty Slewing Bearing

1.Product Introduction: Suitable for heavy-duty equipment (such as cranes with a capacity of over 100 tons), with extremely strong load-bearing capacity, capable of bearing axial loads ≥5000kN and anti-overturning moments ≥5000kN·m.

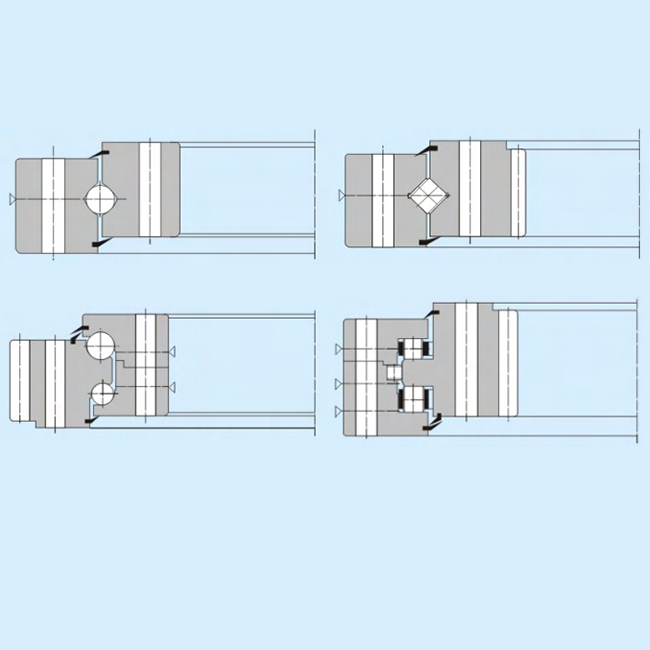

2.Structure Type: It has an integrally forged thick-wall annular shape (wall thickness ≥80mm). The inner and outer rings are made of 42CrMo steel, with built-in three rows of rollers, heavy-duty metal labyrinth seals, and the mounting holes are suitable for high-strength bolts above M30.
3.Size Range: Outer ring diameter: 1500 - 6000mm, inner ring diameter: 1300 - 5500mm, height: 150 - 300mm.
4.Material: Inner ring / outer ring: 50Mn, 42CrMo; rolling elements: GCr15, GCr15SiMn (optional for impact resistance); seals: nitrile rubber, fluororubber (optional for oil and high temperature resistance).
5.Application Fields: Ultra-large port cranes, heavy-duty mining machinery, offshore wind power platforms, large crawler cranes.
6.Key Inspection Items: Flaw detection of forgings (UT/MT inspection), anti-overturning moment, integrity of seals.

Product Description

Heavy-Duty Slewing Bearings: Engineered to Withstand the Toughest Industrial Demands

When your operations depend on heavy-duty Slewing Bearings that deliver unmatched strength and reliability, LUOYANG INNO BEARING CO., LTD offers solutions designed for extreme conditions. These bearings are built to handle axial loads exceeding 5000kN and anti-overturning moments over 5000kN·m, making them ideal for cranes, mining machinery, and offshore platforms. With over three decades of expertise, we combine advanced materials like 42CrMo steel and GCr15 rollers with precision engineering to ensure durability in high-temperature, heavy-load, and high-precision environments.

Why Choose Our Heavy-Duty Slewing Bearings?

  • Unmatched Load Capacity: Axial Load Capacity ≥5000kN | Anti-Overturning Moment ≥5000kN·m.
  • Robust Design: Integrally forged thick-wall rings (≥80mm wall thickness) with heavy-duty labyrinth seals.
  • Customization: Bespoke slewing bearing products delivered in 15–20 days – 70% faster than industry averages.
  • Quality Assurance: 12+ validations per batch, including fatigue/torque tests and radial runout ≤0.05mm.

Technical Specifications

Parameter Details
Outer Diameter φ1500mm – φ6000mm
Load Capacity Axial > 5000kN
Material 50Mn or 42CrMo forged steel
Precision Radial runout ≤0.05mm

Industries We Serve

  • Port Machinery: Ultra-large slewing bearings for cranes with seamless 360° rotation.
  • Mining: Bearings resistant to cyclical impacts and abrasive environments.
  • Renewable Energy: Offshore wind platforms operating in corrosive saltwater.
  • Metallurgy: High-temperature slewing solutions for steel converters (up to 150°C).

Smart Engineering

We provide IoT integration for real-time load/temperature monitoring and predictive maintenance, ensuring your heavy-duty slewing bearing lifespan is fully optimized.

FAQs

Q: How do your bearings withstand 150°C temperatures in steel mills?
A: We use 42CrMo steel with specialized heat treatment, achieving core hardness ≥55 HRC.

Q: Can you deliver a φ3000mm custom slewing bearing in 25 days?
A: Yes! Our modular production system cuts lead times by 30% without compromising quality.

Q: Do you provide on-site installation support?
A: Absolutely. Our engineers offer global installation guidance for all heavy-duty slewing bearings.
