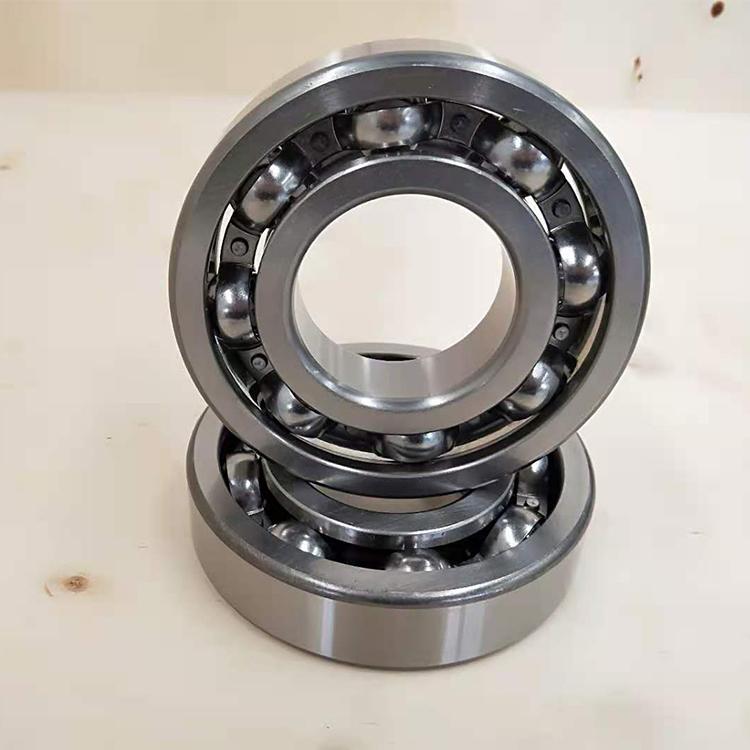

Deep Groove Ball Bearing

1.Product Introduction: Capable of bearing both radial loads and slight axial loads simultaneously. It features a simple structure, high rotational speed, and convenient maintenance, with extremely strong industrial versatility.

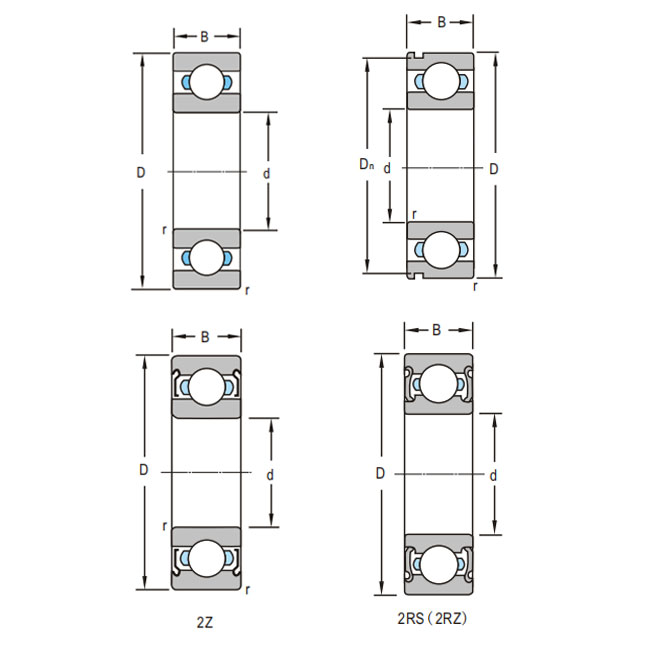

2.Structure Type: Inner ring + outer ring (with circular arc raceway) + single-row steel balls + cage. Some are equipped with seals.
3.Size Range: Inner diameter: 10 - 600mm, outer diameter: 26 - 800mm, width: 8 - 150mm.
4.Material: Inner ring / outer ring: GCr15/GCR15SIMN/20Cr2Ni4A, rolling elements (steel balls): GCr15/GCR15SIMN, cage: stamped steel / brass.
5.Accuracy: Conventional P0/P6 grades, precision models are of P5 grade, and high-speed models are of P4 grade.
6.Sealing: Open type / 2RS (double-sided rubber seal) / 2Z (double-sided iron seal).
Application Fields: Motor spindles, water pumps, fans, automobile transmissions, light industrial equipment.
7.Key Inspection Items: Radial clearance, integrity of seals (for sealed models), accuracy of steel ball arrangement, running noise.

Product Description

Reliable Deep Groove Ball Bearings for High-Performance Machinery

When your machinery demands durability and precision, deep groove ball bearings are the backbone of smooth operation. At LUOYANG INNO BEARING CO., LTD, we specialize in manufacturing bearings that excel under heavy loads, high temperatures, and rigorous industrial demands. With over three decades of expertise, our ball bearing solutions combine advanced materials, precision manufacturing, and tailored designs to keep your equipment running longer and quieter.

Technical Specifications

Parameter Specification
Size Range ID 10–600mm | OD 26–800mm | Width 8–150mm (Custom up to φ5000mm)
Materials High-carbon chromium steel (GCr15/GCr15SiMn) for raceways and bearing balls; Brass or stamped steel cages
Precision & Noise Standard grades (P0/P6), high-speed (P4), precision (P5); Noise control <35dB (<18dB for DGBB-XT series)
Load & Resistance Radial and axial load support; Temperature resistance up to 500°C with specialized bearing heat treatment

Key Advantages

  • Advanced Grinding Technology: Precision raceway smoothness reduces friction and operational wear in deep groove ball bearings.
  • Harsh Environment Protection: Sealed options (2RS rubber or 2Z metal shields) prevent contamination in heavy-duty bearing applications.
  • End-to-End Customization: R&D team delivers non-standard prototypes in 7–10 days and full production in 15–20 days.

Industries We Serve

  • Metallurgy & Heavy Machinery: DGBB-HD Series offers reinforced cages and dynamic load ratings 1.5x higher than standard ball bearings.
  • Port & Construction Machinery: Corrosion-resistant coatings and IP69K sealing protect crane and conveyor bearings from saltwater and dust.
  • Medical & Food Processing: Stainless steel deep groove ball bearings with USP Class VI / NSF H1 grease meet strict hygiene standards.
  • Automotive & Appliances: Low-noise DGBB-XT Series bearings enhance efficiency in transmissions and HVAC systems.

Quality Assurance & Global Logistics

Every bearing undergoes 100% testing for noise, vibration, and load capacity to guarantee a 99.9% qualification rate. We maintain 1,000+ standard models in stock for 48-hour global dispatch.

FAQs

Q: Can your deep groove ball bearings handle frequent start-stop cycles in automotive applications?
A: Yes! Our DGBB-XT Series uses hybrid ceramic balls and reinforced cages for 200,000+ operational cycles.

Q: Do you offer food-grade lubrication options for this ball bearing line?
A: Absolutely. We use NSF H1-certified greases for food processing machinery and hygienic bearing units.

Q: What makes your medical-grade deep groove ball bearings unique?
A: Stainless steel construction and ultra-clean packaging eliminate particle contamination in critical bearings.

Contact Us

Need a Tailored Deep Groove Ball Bearing Solution?

Contact our engineering experts today for selection assistance, technical CAD datasheets, or custom quotes within 48 hours.
