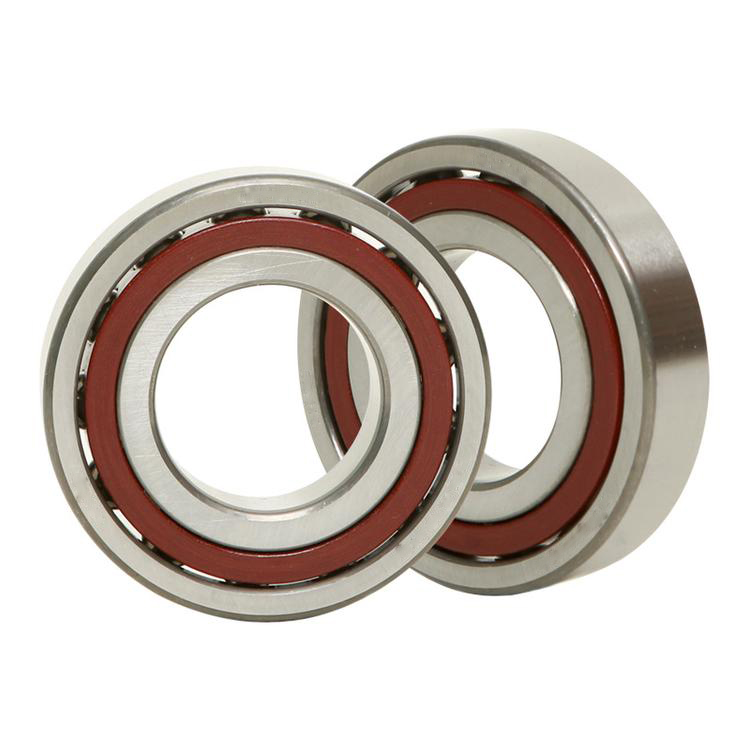

Angular Contact Ball Bearings Single Row

1.Product Introduction: The basic version of angular contact ball bearings, with a single-row steel ball and single contact angle design, mainly designed to bear unidirectional combined loads. It needs to be paired with other bearings to balance the axial force.

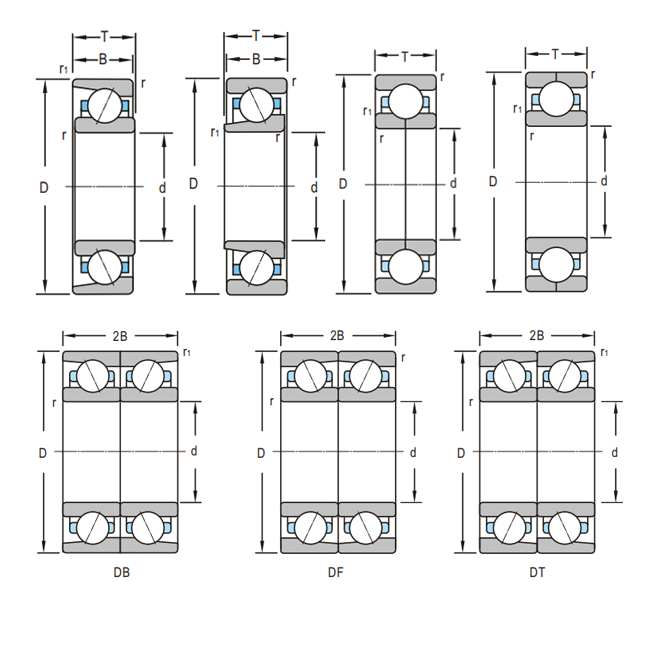

2.Structure Type: Inner ring (with guide groove) + outer ring (with single angular contact raceway) + single-row steel balls + brass or stamped steel cage, featuring a compact structure and convenient installation.
3.Size Range: Inner diameter: 15 - 400mm, outer diameter: 40 - 600mm, width: 11 - 150mm.
4.Material: Inner ring / outer ring: GCr15/GCR15SIMN, rolling elements (steel balls): GCr15/GCR15SIMN, cage: stamped steel (conventional model) / brass (precision model).
5.Accuracy: Conventional P0 grade, precision models are of P6/P5/P4 grades.
6.Application Fields: Small and medium-sized motors, feed shafts of machine tools, automobile steering systems, precision instruments, water pumps.
7.Key Inspection Items: Contact angle (selectable as 15°, 25°, or 40°), radial clearance (0.003 - 0.008mm), stability of the cage, conformity of steel balls fitting.

Product Description

Precision Engineered Angular Contact Ball Bearings Single Row for Demanding Applications

Angular contact ball bearings single row are designed to handle combined radial and axial loads in high-speed applications (up to 15,000 RPM). Ideal for machine tools, robotics, and medical equipment, our bearings feature ultra-pure steel construction, optimized preload designs, and exceptional thermal stability. With 30+ years of expertise, we deliver precision ball bearing solutions that balance performance, durability, and cost-efficiency.

Technical Specifications

Parameter Specification
Dimensions Inner Diameter 15mm – 400mm (Custom up to 5000mm) | Outer Diameter 40mm – 600mm
Precision Grades ABEC 1/3/5/7, ISO P0-P2 for precision angular contact ball bearings
Load & Temperature Axial load capacity up to 50kN; Temperature range -30°C to +300°C
Materials GCr15/GCr15SiMn steel raceways, optional ceramic hybrid bearing balls

Key Advantages

  • Material Excellence: High-purity alloy steel for enhanced wear resistance in high-speed single row ball bearings.
  • Speed Mastery: Stable operational performance at 15,000+ RPM with low vibration profile.
  • Customization Options: Ceramic hybrid angular contact bearings, specialized coatings, keyways, flanges, or tapered bores.

Industry-Tailored Performance

  • Machine Tools: P4-grade radial runout (≤3μm) for high-precision CNC spindle bearings.
  • Robotics & Automation: Low torque variation and brass cages for quiet angular contact ball bearing operation (<40dB).
  • Heavy Machinery: Optimized raceways absorb heavy shock loads and extend bearing fatigue life by 30%.

Quality Assurance & Delivery

Every angular contact ball bearing single row unit undergoes material spectrometry, 3D profile scanning, and 12+ validation checks under ISO 9001 and IATF 16949 standards. Standard bearings ship in 48 hours; custom designs deliver in 15–20 days.

FAQs

Q: Can you replicate legacy angular contact ball bearings single row?
A: Yes! We offer reverse engineering services with high accuracy for custom replacement bearings.

Q: What’s the minimum order quantity for custom single row ball bearing designs?
A: MOQ starts at 50 units, with prototype batches available in 7 days.

Q: How do I calculate preload for my angular contact bearing application?
A: Consult our engineering team for pre-installation CAD simulations and custom load calculations.

Contact Us

Need a Bearing Solution Tailored to Your Machine?

Contact our engineering team to submit your requirements, request CAD load simulations, or receive expert recommendations within 4 hours.
