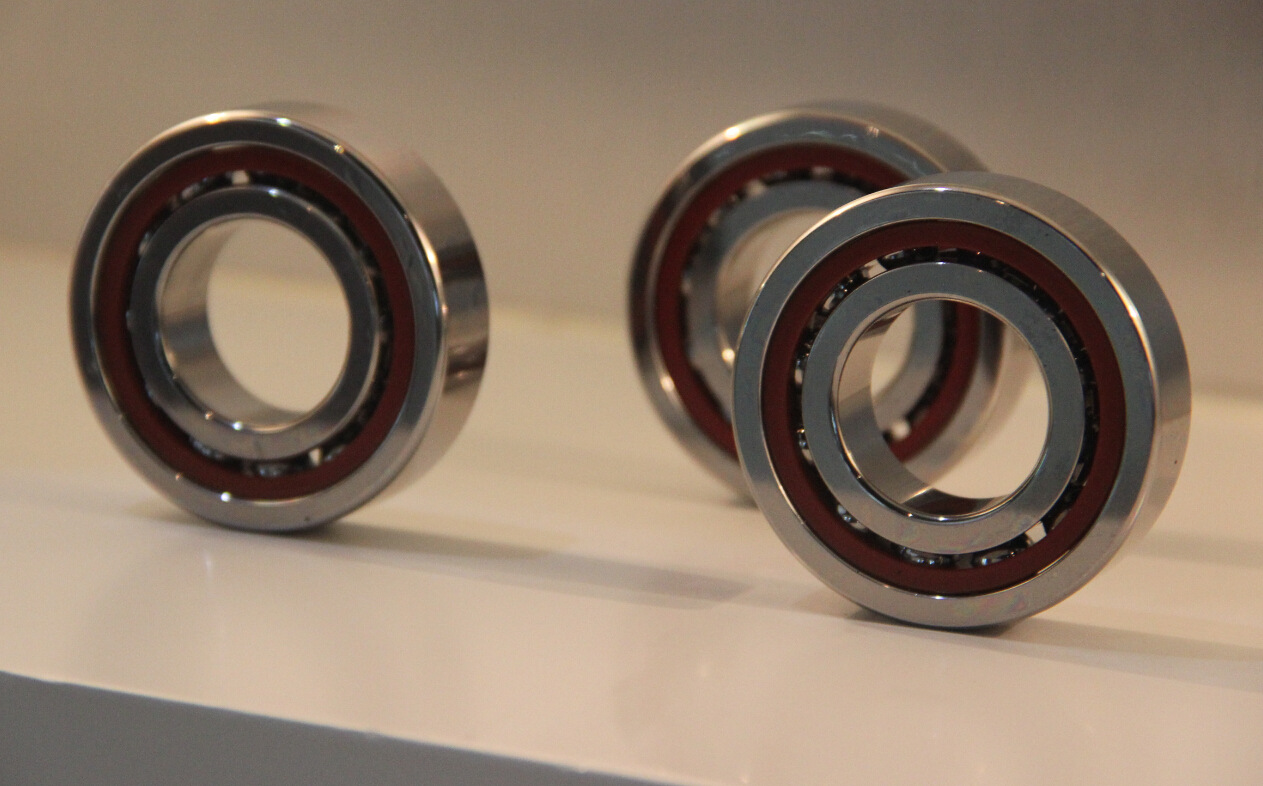

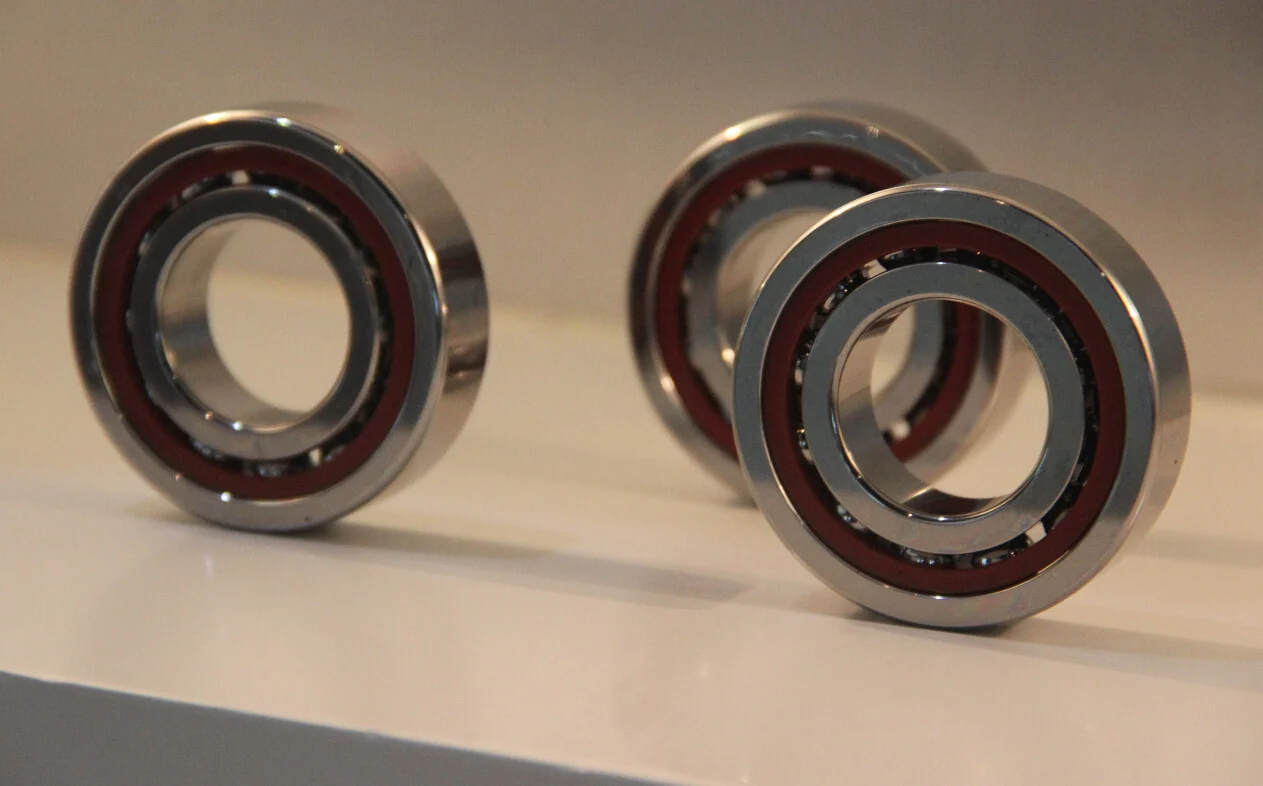

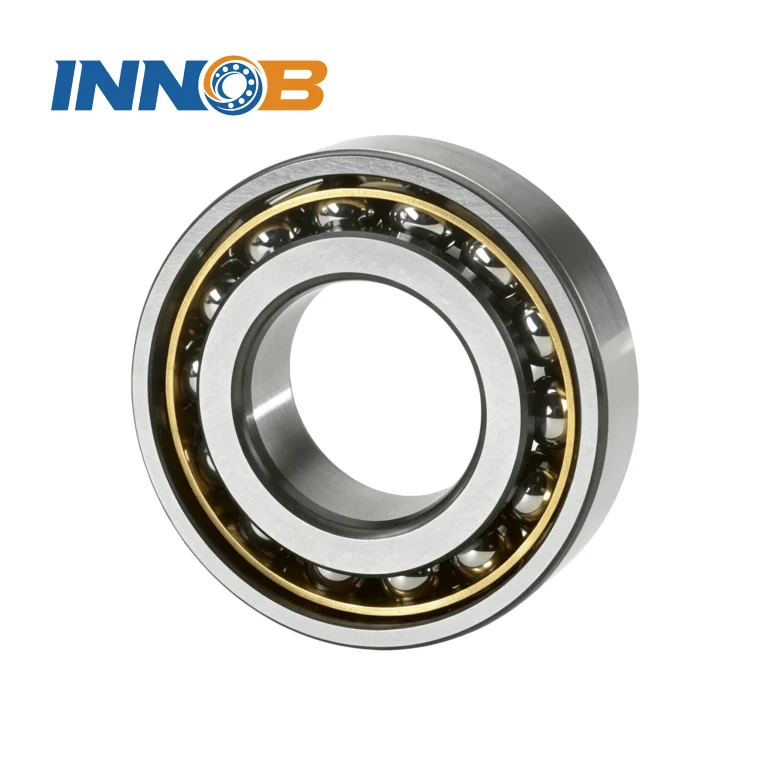

Angular Contact Ball Bearing

1.Product Introduction: With strengthened raceway thickness and larger steel ball size, mainly with a 40° contact angle, the axial load-bearing capacity is significantly improved, suitable for medium and heavy combined load scenarios.

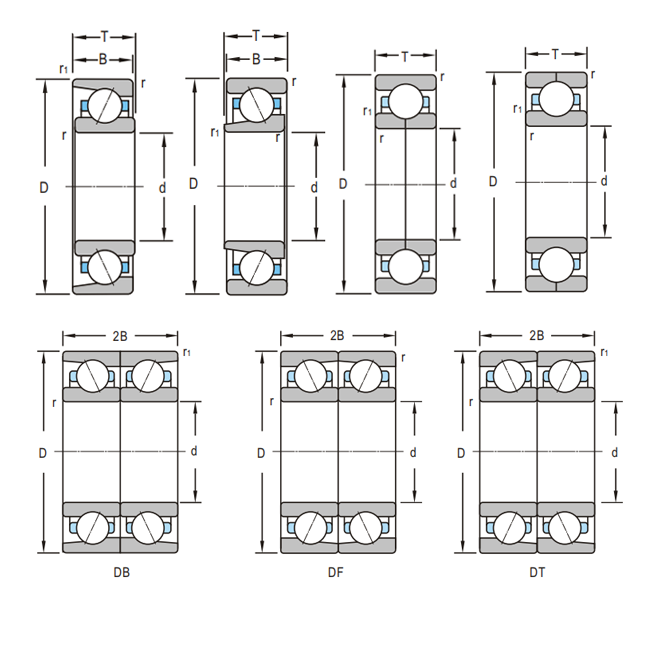

2.Structure Type: Inner ring + outer ring (thick-wall angular contact raceway, quenching depth ≥ 5mm) + large-diameter steel balls + steel cage, with strong impact resistance.
3.Size Range: Inner diameter: 30 - 600mm, outer diameter: 72 - 1000mm, width: 20 - 200mm.
4.Material: Inner ring / outer ring: GCr15/GCR15SIMN, rolling elements (steel balls): GCr15/GCR15SIMN, cage: steel (impact-resistant).
5.Accuracy: Conventional P0 grade, precision models are of P6/P5/P4 grades.
6.Application Fields: Spindles of heavy-duty machine tools, transmission ends of port cranes, mining machinery, large reducers.
7.Key Inspection Items: Hardness of the raceway (HRC60 - 65), axial load-bearing capacity (≥ 80kN), radial runout, integrity of steel balls.

Product Description

Angular Contact Ball Bearing: Precision Performance for Demanding Applications

Angular contact ball bearings excel where precision, durability, and load capacity matter. Engineered with an optimized contact angle and reinforced raceways, our bearings handle medium-to-heavy axial and radial loads in extreme conditions. Whether for metallurgical machinery, port equipment, or medical devices, our ball bearing products deliver unmatched performance and reliability.

Technical Specifications & Quality

Parameter Specification
Load Capacity & Temp Axial/Radial load up to 300kN; Temperature range from -40°C to 500°C
Precision & Noise Precision grades P0 (ABEC-1) to P4 (ABEC-7); Noise levels <35dB (<25dB for medical models)
Sizes & Availability ID 30–600mm | OD 72–1000mm (Custom up to φ5000mm); 1,000+ standard bearing models in stock
Materials GCr15 steel raceways (HRC 60–65), GCr15SiMn steel balls, and impact-resistant cages for angular contact bearings

Key Advantages

  • Heavy Combined Load Capacity: Engineered for optimal axial and radial force distribution in angular contact ball bearings.
  • High-Temperature & Corrosion Resilience: Heat-stable materials and special surface treatments withstand extreme operational environments.
  • Agile Customization: Prototype samples in 15 days and full-scale manufacturing in 15–20 days for custom bearings up to φ5000mm.

Where Angular Contact Ball Bearings Deliver Results

  • Metallurgical Machinery: High-temperature bearings withstand continuous operation in steel rolling mills with high axial load capacity.
  • Port Equipment: Impact-resistant models power crane slewing rings, surviving salt spray and heavy shock loads.
  • Medical Devices: P4-grade low-noise angular contact ball bearings ensure smooth rotation in diagnostic imaging systems.

Quality Assurance & Support

Every bearing undergoes 100% dimensional inspection, achieving a 99.9% defect-free rate backed by 50,000-hour accelerated lifespan testing. We provide failure analysis, retrofitting services, and IoT predictive bearing monitoring.

FAQs

Q: What certifications do your angular contact ball bearings hold?
A: ISO 9001, IATF 16949, CE, FDA 510(k), and GOST-R, with sector-specific bearing certifications available on request.

Q: Can I order just 1 custom bearing?
A: Yes! We accept MOQ 1 for prototypes and special application ball bearings.

Q: How long is the warranty on your angular contact bearings?
A: 12–36 months based on application severity and operational conditions.

Contact Us

Need a Precision Solution?

Contact our engineering team to submit technical parameters, request CAD drawings, or receive custom quotes within 4 hours.
