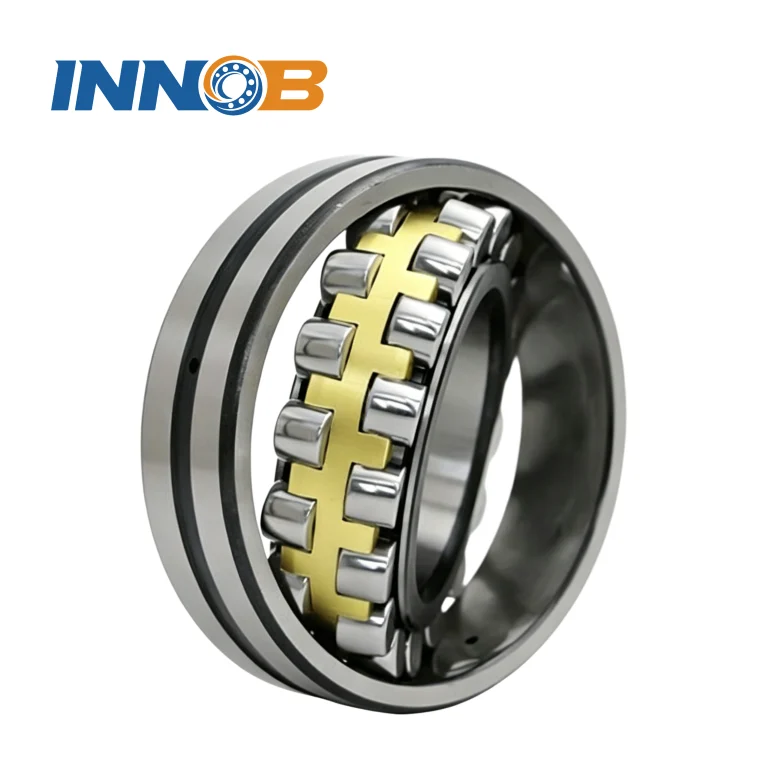

22211 Bearing

1.Product Introduction: The 22211 model is a double-row self-aligning roller bearing, suitable for light loads, with a compact structure and used for small-sized shaft systems.

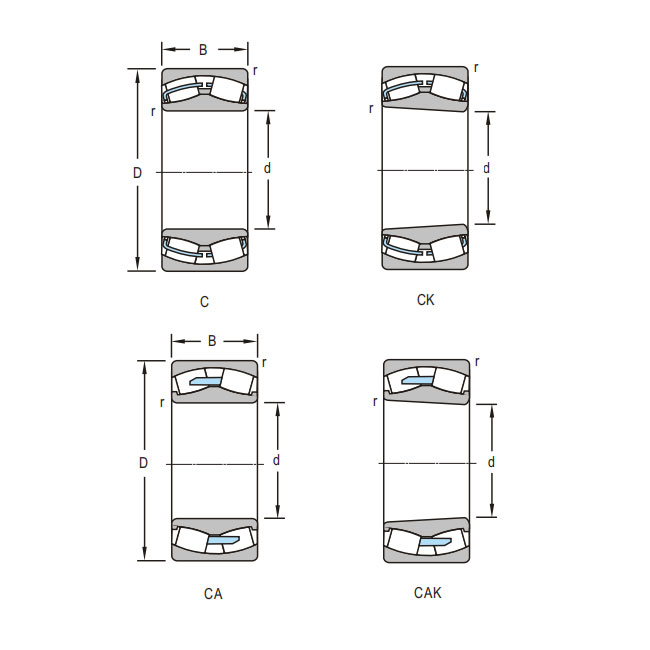

2.Structure Type: The inner ring has a spherical raceway, the outer ring has double ribs, with double-row rollers + stamped steel cage, and it is open.
3.Size Range: Inner diameter 55mm, outer diameter 100mm, width 25mm.
4.Material: Inner ring / outer ring: GCr15 bearing steel, rollers: GCr15 bearing steel, cage: stamped steel.
5.Precision: P0/P6 level.
6.Common Inner Tapered Hole: Optionally with a 1:12 tapered hole (suitable for a shaft diameter of 55mm), and the conventional one is a straight hole.
7.Application Fields: Small electric motors, water pumps, textile machinery, light industrial equipment.
8.Key Inspection Items: Radial clearance, dimensional accuracy, roller fitting degree.

Product Description

22211 Bearing: High-Performance Spherical Roller Bearing for Precision Applications

When you need a reliable solution for light-load applications in compact machinery, the 22211 bearing stands out as a top choice. This double-row self-aligning roller bearing is engineered for durability, high-temperature resistance, and precise performance across industries like medical equipment, port machinery, and small electric motors. With a compact design, it offers exceptional load distribution and self-aligning capabilities—perfect for shaft systems requiring flexibility and reliability in a high-performance bearing solution.

Technical Specifications

Parameter Specification
Dimensions (ID/OD/Width) 55mm / 100mm / 25mm
Precision Grade P0 (standard) / P6 (enhanced)
Structure Double-row rollers with stamped steel cage
Optional Features 1:12 tapered bore (55mm shaft)

Core Advantages

  • Self-Aligning Design: Compensates for shaft misalignment up to 3°, ensuring smooth bearing operation.
  • High-Purity Materials: GCr15 steel construction guarantees optimal hardness (60-66 HRC) and fatigue resistance.
  • Rapid Customization: Standard bearing units available for 48-hour dispatch, with custom variants delivered in 15–20 days.

Industry-Proven Applications

  • Medical Imaging: P6-grade 22211 bearing precision (<35dB noise) ensures MRI/CT scanner stability.
  • Port Machinery: Optional triple-lip seals protect the bearing from heavy dust and high humidity.
  • Electric Motors: Self-aligning features reduce bearing maintenance costs by 30% in ventilation systems.

Quality & Lifecycle Support

Every bearing undergoes triple-stage testing, including spectrometry, vibration analysis (ISO 15242), and radial clearance validation to ensure 99.9% defect-free performance.

FAQs

Q: Can the 22211 bearing handle high-temperature environments?
A: Yes, we offer high-temperature bearing variants with synthetic PAO grease (-20°C to 150°C).

Q: What is the MOQ for customized bearing orders?
A: Minimum 10 units for custom designs (sealed/coated); standard bearing units have no MOQ.

Q: Do you provide installation support for your roller bearing products?
A: Absolutely—our engineers offer free 24/7 guidance on mounting, lubrication, and wear analysis.
