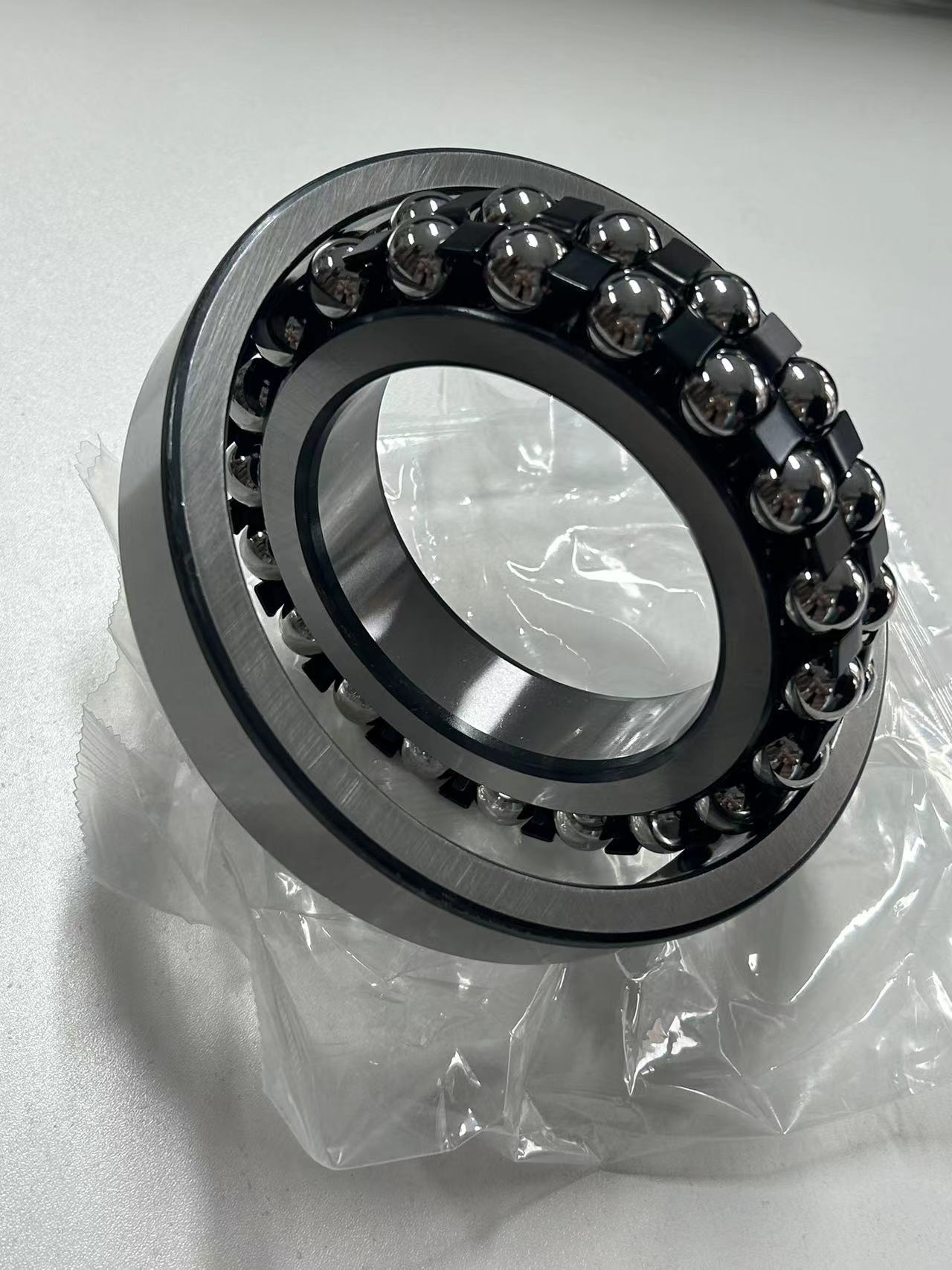

1313 Bearing

1.Product Introduction: The double-row model of self-aligning ball bearings (1313), with an inner diameter of 65mm and a double-row steel ball design. Its radial load-bearing capacity is 1.8 times that of the single-row ones, suitable for medium load scenarios.

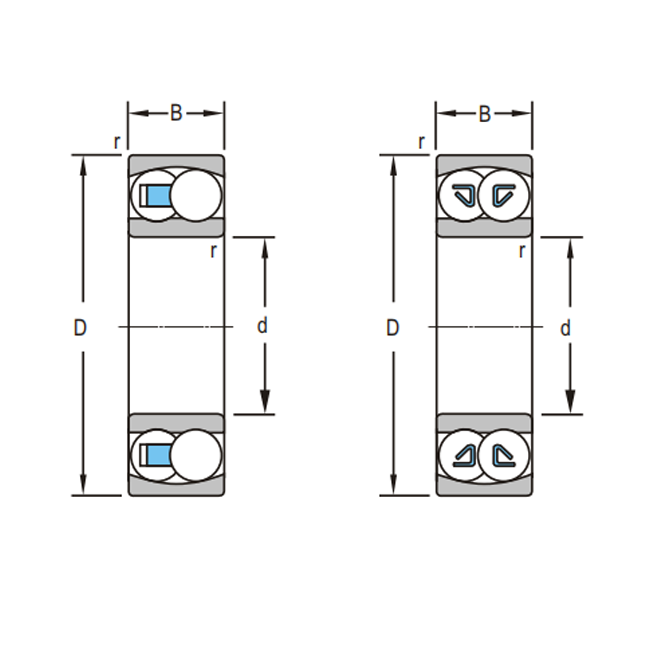

2.Structure Type: Inner ring (with cylindrical hole) + outer ring (with spherical raceway) + double-row steel balls + engineering plastic cage. An isolation ring is set in the middle to prevent collisions.
3.Size Range: Inner diameter: 65mm, outer diameter: 140mm, width: 33mm.
4.Material: Inner ring / outer ring: GCr15, rolling elements (steel balls): GCr15, cage: engineering plastic, isolation ring: GCr15.
5.Accuracy: Conventional P0 grade, precision models are of P6 grade.
6.Application Fields: Medium-sized water pumps (5.5kW), fans (10kW), textile equipment (carding machines), reducers (medium load).
7.Key Inspection Items: Consistency of double-row steel ball clearance (deviation ≤ 0.003mm), inner diameter accuracy (65 ± 0.008mm), running stability.

Product Description

1313 Bearing for Heavy-Duty Industrial Applications

When your machinery operates under extreme conditions, the 1313 bearing delivers unmatched reliability. Designed for heavy-load scenarios like mining crushers and steel mill rollers, this double-row self aligning ball bearing combines robust construction with precision engineering. With an inner diameter of 65mm and an optimized load capacity, it is built to reduce downtime and extend equipment lifespan.

Core Specifications

Parameter Specification
Dimensions ID 65mm | OD 140mm | Width 33mm (Custom up to φ5000mm)
Load & Material Radial load rating for medium-heavy use; High-purity GCr15 steel for bearing rings and balls
Precision & Temp Standard P0 grade or P6 precision; Temperature range -30℃ to 150℃ (up to 500℃ custom)
Design Features Double-row self aligning bearing with isolation rings to enhance vibration stability

Key Advantages

  • Heavy-Duty Performance: Double-row steel ball design ensures even load distribution in heavy-load bearings.
  • Precision Manufacturing: Clearance consistency (≤0.003mm deviation) for high-speed, low-noise ball bearings.
  • Faster Customization: Modular production delivers non-standard self aligning ball bearings in 15–20 days.

Ideal Applications

  • Metallurgy: Rolling mills and continuous casting machines using heavy-duty self aligning bearings.
  • Mining: Crushers and conveyor systems requiring durable ball bearings and roller bearings.
  • Industrial Machinery: Water pumps, textile equipment, and reducers driven by precision bearings.

Quality Testing & Technical Support

Every 1313 bearing is made with vacuum-degassed steel and undergoes fatigue, vibration, and thermal cycling checks. We offer 24/7 technical assistance, smart condition-tracking, and full bearing lifecycle support.

FAQs

Q: How does the 1313 bearing handle high temperatures in steel mills?
A: Advanced GCr15 steel construction and heat treatment allow continuous operation in high-heat self aligning ball bearing setups.

Q: Can I get a custom-sized self aligning bearing for a mining crusher?
A: Yes! We specialize in custom bearings up to φ5000mm, with custom orders shipping within 3 weeks.

Q: What makes your 1313 bearings more durable than competitors?
A: Triple quality control and precision raceway grinding ensure long service life in heavy-duty ball bearings.

Contact Us

Ready to Upgrade Your Equipment with a 1313 Bearing?

Contact our engineering team to request custom quotes, technical specifications, CAD drawings, or engineering guides within 4 hours.
